Development of biochar-based magnetic adsorbent for enhanced Pb(II) ions removal

Structural characterization

X-rays diffraction (XRD)

XRD investigation reveals the crystal construction and part purity of the samples below investigation. Determine 1 presents XRD patterns with all listed peaks of (NCCF) and NCCF/BC composites comparable to ICDD (01-083-6066) of Ni_0.5Co_0.5Fe₂O₄. The compounds had most peaks depth at (311) and powerful diffraction peaks at (111), (220), (222), (422), (511), and (440) which matched with the reflections of the face-centered cubic (FCC) single part spinel construction with the Fd-3 m house group. It implies that the ready samples are in a single part freed from contaminants.

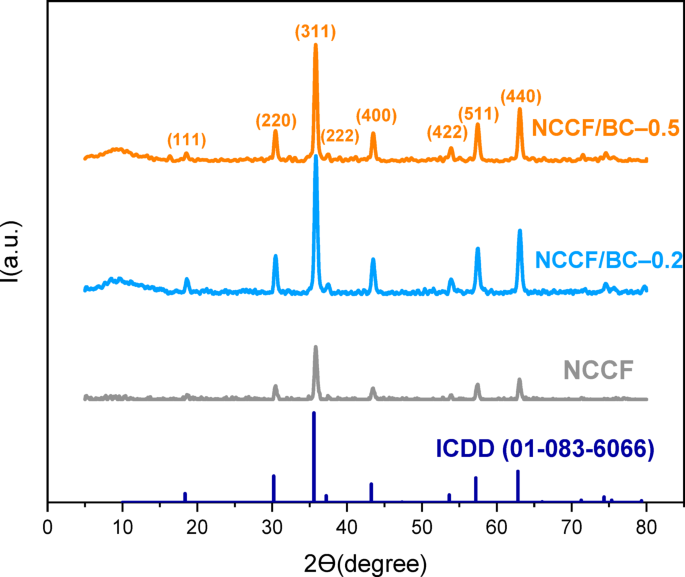

X-ray diffraction patterns for (NCCF) and NCCF/BC composites.

The height positions are matched to ICDD Card (01-083-6066) of Ni_0.5Co_0.5Fe₂O₄³³. The NCCF/BC composites sample resembles a hybrid of the (NCCF) and biochar patterns, with humping between 10° and 20°, which is attributed to the amorphous construction of the biochar³⁴. The diffraction peaks of NCCF/BC composites are similar to these of the as-prepared NCCF, displaying that the including biochar doesn’t promote part transition. Desk 1 reveals XRD construction parameters comparable to common crystallite dimension (D), lattice parameter (a), quantity of unit cell (V), dislocation density (δ), and The Lattice pressure (ɛ) for produced samples.

The interplanar spacing (d) was calculated in line with Bragg’s equation³⁵:

The lattice parameter of the cubic spinel construction was evaluated utilizing the relation³⁵:

the place (hkl) symbolize the Miller indices of the corresponding diffraction aircraft.

The common crystallite dimension (D) was estimated from essentially the most intense diffraction peak utilizing the Debye–Scherrer equation³⁶:

the place okay is the form issue (0.94 for cubic symmetry), λ is the wavelength of the Cu Kα radiation (0.15406 nm), β is the complete width at half most (FWHM) of the diffraction peak expressed in radians, and θ is the Bragg diffraction angle.

The dislocation density (δ), which signifies the quantity of crystallographic imperfections inside the materials, was decided utilizing³⁷:

Moreover, the lattice pressure (ε) arising from structural distortions comparable to dislocations and stacking faults was calculated utilizing³⁸:

By way of structural evaluation it’s confirmed that biochar doesn’t have main impression both on the crystallographic construction of NCCF ferrite as NCCF maintains cubic spinel part with minor variations by way of crystallite dimension (~ 19 nm), lattice parameter and unit cell quantity. Then again, because the biochar focus will increase, A major lower in lattice pressure suggests diminished inside tensions and higher structural ordering. The small variation in dislocation density signifies that biochar largely types defects which alter the properties from their regular habits, somewhat than modifying crystal construction.

Crystallite dimension and microstrain each contribute to XRD peak broadening. To research the height broadening within the XRD sample, the crystallite dimension and microstrain are measured utilizing two well-known fashions: the Williamson-Corridor (W-H) plot and the Dimension-Pressure Plot (SSP) methodology. The W-H methodology divides peak broadening into dimension and pressure contributions utilizing the next equation³⁹:

In distinction, the SSP mannequin assumes Gaussian pressure broadening and Lorentzian dimension broadening, that are expressed as:

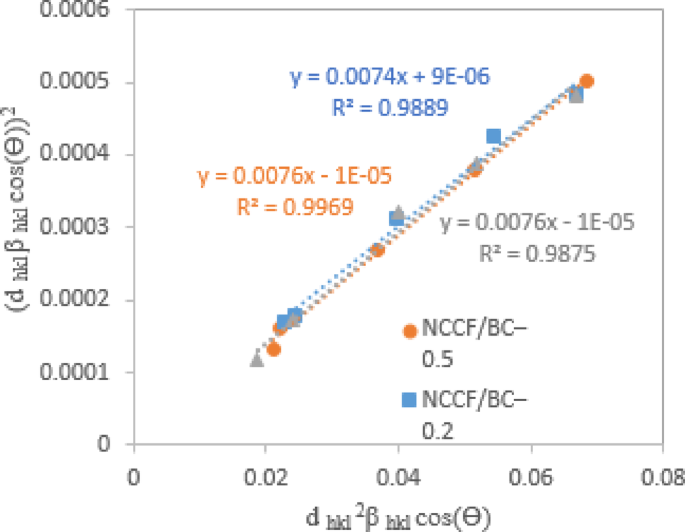

Dimension-strain plot (SSP) plot for NCCF and NCCF/BC composites.

From Desk 2, SSP outcomes confirmed bigger crystallite sizes (19.05–27.32 nm) and extra pronounced constructive pressure (5.9–7.6 × 10⁻³). The SSP evaluation demonstrates excessive accuracy in comparison with the Williamson–Corridor methodology, with R² values practically equal to at least one, as proven in Fig. 2. Nevertheless, the linearity noticed from the Williamson-Corridor plots was not adequate to permit extraction of any quantifiable crystallite dimension or micro-strain information. Williamson-Corridor method was saved just for the aim of comparability with the SSP method. The W-H evaluation confirmed poor linearity implying that the required assumptions should not utterly met in case of synthesized nanoparticles. The W-H evaluation requires the idea that the broadening of the peaks is attributed to the mixed results of the crystallite dimension and isotropic lattice pressure^40,41. Then again, spinel ferrites typically present anisotropic pressure due to the cationic rearrangement, lattice imperfections, and construction distortion violating the required assumption of the W-H evaluation. Then again, the Dimension-Pressure Plot (SSP) methodology provided a greater linear relationship because it provides better weight to low-angle reflections, thus leading to dependable estimation of crystallite dimension and pressure in ferrite nanoparticles⁴¹.

The SSP method is usually thought to be extra correct when the lattice pressure is comparatively low, because it reduces the overestimation of dimension broadening and supplies a greater separation between dimension and pressure contributions³⁹. Subsequently, the measured crystallite dimension and microstrain values obtained within the current research are based mostly on the SSP solely. The rise in crystallite dimension upon biochar incorporation, significantly at increased loading (0.5 g), means that biochar could facilitate crystal development and partially relieve inside stresses.

Fourier remodel infrared (FT-IR)

FT-IR evaluation additional supported the spinel part formation by revealing the presence of outstanding absorption bands within the low-frequency area, particularly round 600 cm^-1 and 450 cm^-1. The bands noticed on this research correspond to the intrinsic stretching vibrations of metal-oxygen bonds within the tetrahedral and octahedral complexes, respectively⁴², proven in Fig. 3. This confirms that the cubic spinel-type NCCF (Ni₀.₆Co₀.₁Cu₀.₃Fe₂O₄) had been successfully deposited on the biochar floor⁴³.

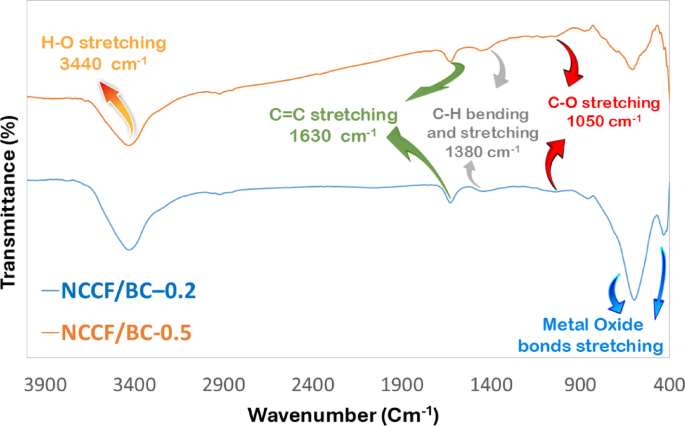

FT-IR of NCCF/BC composites.

Moreover, the FT-IR measurements offered affirmation of the purposeful teams discovered on the floor of the composite supplies. The stretching vibration of O-H (from hydroxyl teams or adsorbed moisture) was recognized as the reason for the broad peak noticed at round 3440 cm^-1. The absorption band at roughly 1630 cm^-1 corresponds to the stretching vibrations of C = C bonds within the fragrant rings of the biochar framework⁴⁴. Moreover, the peaks close to 1380 cm^-1 and 1050 cm^-1 are attributed to C-H bending and the stretching vibrations of oxygen-containing purposeful teams (comparable to carboxylic or alkoxy C-O teams) on the biochar, respectively⁴⁵. The coexistence of those distinctive biochar peaks alongside the attribute metal-oxygen bands supplies robust proof of the profitable mixture of NCCF with BC.

Floor characterizations

Brunauer-Emmett-Teller (BET) floor space measurements

The textural properties of the NCCF and NCCF/BC composites had been examined by nitrogen adsorption–desorption measurements at 77 Ok, following degassing at 200 °C for 8 h. As illustrated in Fig. 4a–c, the adsorption isotherms of all samples will be labeled as Sort IV in line with the IUPAC classification⁴⁶, exhibiting a single-point saturation plateau and an H3-type hysteresis loop⁴⁷.

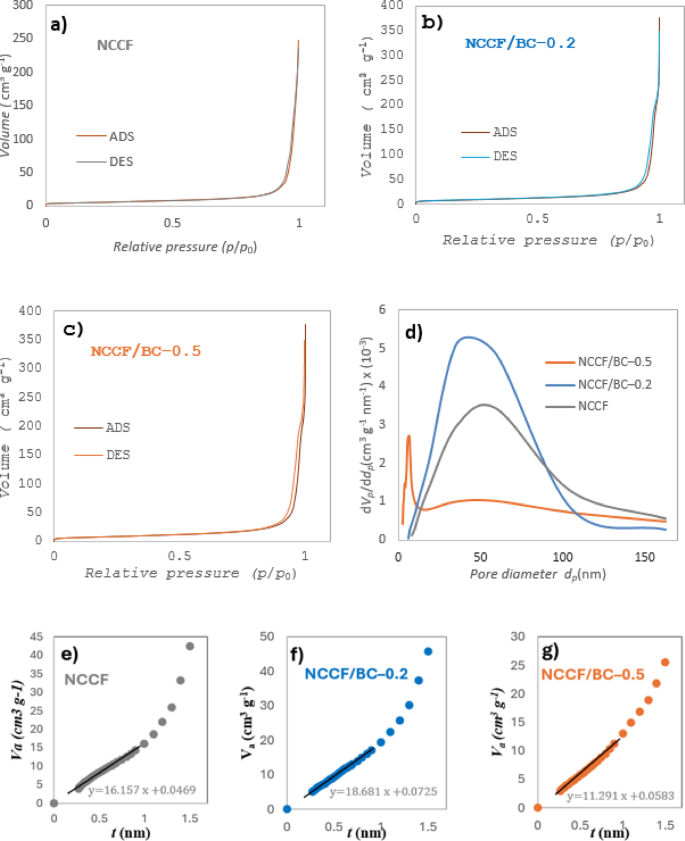

(a–c) Adsorption/desorption isotherm, (d) pore dimension distribution utilizing BJH strategies & (e–g) t-plot methodology for (NCCF) and NCCF/BC composites.

This habits is attribute of mesoporous supplies composed of non-rigidly aggregated particles, resulting in the formation of slit-shaped pores⁴⁸. The precise floor space, complete pore quantity, and common pore diameter had been decided utilizing the BET methodology⁴⁹, and the corresponding values are summarized in Desk 3.

BET floor space and porosity analyses revealed vital adjustments upon biochar loading. The obtained NCCF that featured a mesoporous construction by interparticle voids of ferrite nanoparticles, had a reasonable particular floor space of 20.67 m² g⁻¹ and complete pore quantity of 0.26 cm³ g⁻¹. On addition of 0.2 g biochar (NCCF/BC–0. 2), the floor space and pore quantity of BET traits had been considerably enhanced to 29.28 m² g⁻¹ and 0.33 cm³ g⁻¹, respectively. This enhancement will be attributed to the extremely porous nature of biochar and its position in stopping ferrite nanoparticle agglomeration, which generates extra pores. Nevertheless, additional rising the biochar content material to 0.5 g (NCCF/BC–0.5) resulted in a lower in floor space (17.89 m² g⁻¹) and pore quantity (0.13 cm³ g⁻¹), which is probably going resulting from excessive quantity of biochar permits iron oxides to enter and block a number of the biochar pores⁵⁰. From the t-plot methodology, NCCF/BC-0.2 was discovered to have the best exterior floor space (18.68 m² g⁻¹) and micropore quantity (0.0725 cm³ g⁻¹), suggesting that there was better pore accessibility and dispersal of ferrite nanoparticles after the introduction of biochar. A rise in biochar content material to 0.5 g resulted in decrease values of each exterior floor space and micropore quantity, which could possibly be attributed to the blockage of some pores and aggregation of particles⁵⁰. These outcomes, along with BJH evaluation, confirmed that every one samples possess mesoporous traits, making NCCF/BC–0.2 essentially the most favorable candidate for adsorption-based environmental functions.

Magnetic properties

The magnetic properties had been investigated utilizing vibrating pattern magnetometer (VSM) at room temperature. Determine 5 shows the magnetic hysteresis loops of (NCCF) and NCCF/BC composites at 300 Ok, and the derived magnetic parameters are summarized in Desk 4. The saturation magnetization (Ms), remanent magnetization (Mr) and coercivity (Hc) of the pure NCCF pattern had been 46.15 emu g⁻¹, 8.94 emu g⁻¹ and 131.14 Oe respectively, suggesting that it exhibited typical ferrimagnetic traits for a spinel ferrite⁵¹. by loading of biochar (BC), each M_s and M_r decreased with rising BC content material. The M_s worth decreased to 33.48 emu g⁻¹ for NCCF/BC–0.2 and additional to 23.02 emu g⁻¹ for NCCF/BC–0.5, whereas M_r decreased from 8.94 to six.63 and 4.55 emu g⁻¹, respectively. Such lower is because of discount of the magnetic part by the non-magnetic biochar matrix, which weakens steel ion interactions by superexchange at both tetrahedral (A) or octahedral (B) websites within the spinel construction for a diminished internet magnetic second.

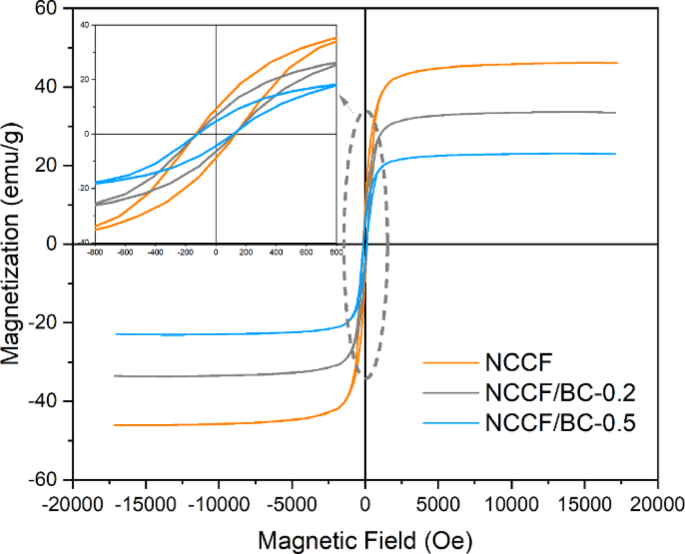

Magnetic hysteresis curves of (NCCF) and NCCF/BC composites at 300 Ok.

The remanence ratio (R = Mr/Ms) was roughly fixed throughout all samples (~ 0.19–0.20), indicating that the magnetic area configuration is essentially unbiased of the addition of BC. In distinction, the coercivity confirmed a slight lower from 131.14 Oe for pure NCCF to 123.34 Oe and 117.41 Oe for NCCF/BC–0.2 and NCCF/BC–0.5, respectively. This noticed discount is ascribed to the diminished interparticle magnetic interactions ensuing from the presence of carbon matrix, which partially separates the ferrite nanoparticles. Moreover, floor results and potential slight variations in particle dimension could have an effect on magnetic anisotropy. Comparative drops in coercivity and magnetization have been famous for ferrite–biochar composites, attributed to the non-magnetic carbon part which acts on each magnetic coupling in addition to structural properties⁵².

General, the outcomes point out that incorporating biochar into the NCCF construction successfully adjustments the magnetic properties by lowering saturation magnetization whereas sustaining reasonable coercivity. Regardless of the discount in magnetization, the composites nonetheless have enough magnetic response, which is advantageous for functions requiring magnetic separation, comparable to wastewater therapy and catalytic processes.

Software of biochar-based magnetic adsorbents for the Pb(II) ions removing

Impact of the answer pH

The answer pH has a significant position in figuring out the adsorption mechanism and the removing effectivity. A number of mechanisms have been reported for the removing of Pb(II) ions by biochar-based adsorbents comparable to; bodily adsorption, floor complexation, electrostatic interactions, ion change, and minerals precipitation⁵³. Typically, at low pH values, a repulsion between the positively charged functionalized biochar and Pb (II) ions results in a poor uptake. Whereas, because the pH values will increase > 3–4, the adsorption effectivity will increase^54,55,56. Then again, the purpose of zero cost, PZC, for NCCF, as reported in our earlier work, is 5.2⁴⁸. Determine 6 reveals the variation of the removing effectivity of the naked biochar; BC, and the ready magnetic nanocomposites; NCCF/BC-0.2 and NCCF/BC-0.5 with the answer pH. Based mostly on the above findings, an anticipated development is proven in Fig. 6, the place the removing % is excessive at excessive pH values > 5. Whereas, at low pH worth of 4, the biochar maintains its glorious efficiency, PZC = 2–3⁵⁴, the lower within the removing % is expounded to the magnetic NCCF and it’s extra pronounced with rising NCCF content material within the composite, pattern NCCF/BC-0.2.

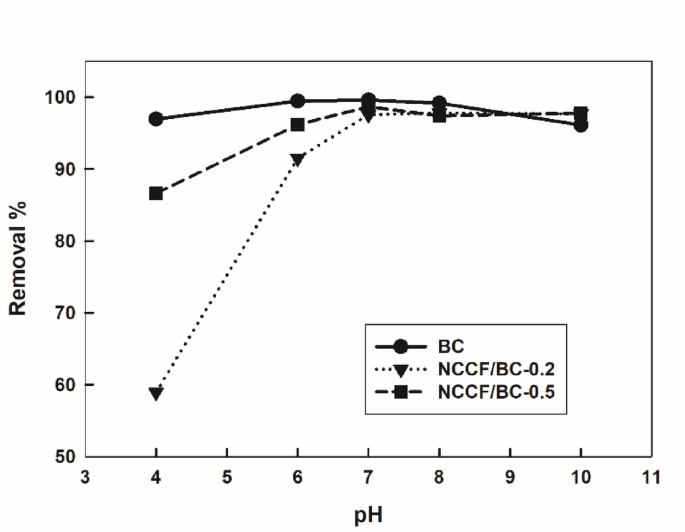

Variation of the removing % of Pb(II) ions by BC, and NCCF/BC composites with the pH, the preliminary Pb(II) ions focus = 30 ppm, shaking time = 24 h, at room temperature.

Kinetic research

The adsorption effectivity % of NCCF and ready magnetic nanocomposites for the removing of Pb(II) ions, are calculated at totally different contact instances. Determine 7A reveals the variation of the removing % with the contact time. It’s clear that introducing biochar within the nanocomposite facilitates the adsorption, particularly on the early phases. The equilibrium is reached inside 30 min. for NCCF whereas, a a lot sooner uptake, inside 10 min., is noticed by introducing the biochar and it’s extra pronounced with rising its quantity.

Kinetic information are fitted to pseudo first, pseudo second kinetics, and the intra-particle diffusion fashions, as proven in Fig. 7B–D, respectively⁵⁷.

the place, q_t and q_e symbolize the quantities adsorbed at time = t and at equilibrium, respectively. okay₁ and okay₂ denote the pseudo first and second order price constants of adsorption, respectively. okay_id is the fixed for intra-particle diffusion price.

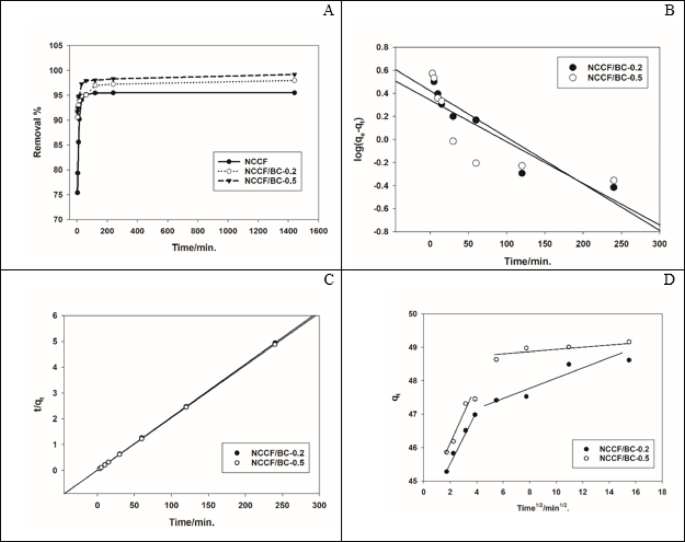

(A) Variation of the removing % of Pb(II) ions by NCCF, and NCCF/BC composites with the contact time, at pH = 6, the preliminary Pb(II) ions focus = 100 ppm, at room temperature, (B) 1st, (C) 2nd order kinetic, and (D) the intra-particle diffusion mannequin for NCCF/BC-0.2, and NCCF/BC-0.5.

From calculated kinetic parameters listed in Desk 5, The values of R² are nearer to unity, and the calculated adsorbed quantities at equilibrium, q_e, are nearer to the experimental values, within the case of the pseudo second order kinetics. Thus, it may be concluded that the adsorption of Pb(II) ions on magnetic NCCF, and ready magnetic biochar-based composites follows the pseudo second order kinetics, suggesting a chemisorption mode by a complexation of floor purposeful teams^57,58. By rising the quantity of the biochar, within the ready composite, the kinetic of the adsorption is extra facilitated, as indicated by the upper okay₂ values.

Two linear sections are noticed within the intra-particle diffusion fashions for NCCF/BC-0.2, and NCCF/BC-0.5 samples, as proven in Fig. 7D, suggesting that the Pb(II) ions are first adsorbed on the composite floor then, it’s subtle into the sorbent pores⁵⁷. Increased intercept values and decrease price constants are noticed for the second linear sections associated to the pore diffusion; within the case of NCCF, due to this fact, the pore diffusion is restricted with respect to the floor adsorption, and will be thought-about because the rate-determining step for the adsorption of Pb(II) ions on the magnetic NCCF⁴⁸. It’s value mentioning that within the presence of the biochar, each floor adsorption and pore diffusion will be attributed to the rate-determining step, for the reason that values of floor and diffusion intercepts are comparable. That is as a result of elevated porosity of biochar-based composites relative to the naked NCCF.

Adsorption isotherms

The Variation of the removing % and the adsorption capability of Pb(II) ions by NCCF, NCCF/BC-0.2, and NCCF/BC-0.5 with the preliminary steel ions focus is proven in Fig. 8A. The removing % and the adsorption capability improve by the rising the preliminary Pb(II) ions focus, and that is extra pronounced with the rising the biochar quantity within the composite, reflecting the superb adsorption efficiency of the ready magnetic nanocomposites. The noticed improve in removing effectivity with rising of the preliminary steel ion focus, inside the evaluated focus window, will be attributed to mass switch kinetics and synergistic floor phenomena. Excessive preliminary pollutant concentrations yield a focus gradient that overcomes liquid movie diffusion resistance, forcing pollutant species deeper into the micro/mesoporous community of the composite. Moreover, for supplies exhibiting cooperative adsorption habits, the preliminary ion uptake enhances the affinity of the sorbent for the remaining ions by way of intermolecular interactions, which in flip outcompetes the background solvent molecules.

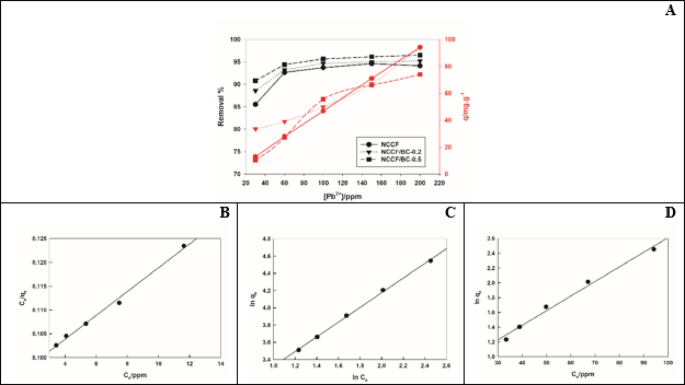

(A) Variation of the removing % and the adsorption capability of Pb(II) ions by NCCF, and NCCF/BC composites with the preliminary steel ions focus at pH = 6, shaking time = 2 h, at room temperature. (B) Langmuir, (C) Freundlich, and (D) Temkin adsorption isotherms for adsorption of Pb(II) ions on NCCF/BC-0.2.

The adsorption information are fitted to Langmuir⁵⁹, Freundlich⁶⁰ and Temkin⁶¹ isotherms, as proven in Fig. 8B–D, respectively. In accordance with the next Eqs.^62,63,64, totally different isotherms parameters are calculated and listed in Desk 6.

the place, Ok_L, Ok_F, and Ok_T are Langmuir, Freundlich, and Temkin constants, respectively. q_m is the utmost adsorption capability (mg.g^− 1). n and b are Freundlich and Temkin constants.

Based mostly on the correlation coefficient, R², values, the adsorption of Pb(II) on NCCF, NCCF/BC-0.2, and NCCF/BC-0.5 matches greatest Freundlich isotherms, that’s to say the adsorption happens on non-energetically equal heterogenous websites. To additional consider the adsorption isotherms, nonlinear regression was carried out. As proven in Fig. 9; Desk 7, samples NCCF and NCCF/BC-0.5, Freundlich can higher describe the adsorption information (which agrees with the linear fashions). Whereas for pattern NCCF/BC-0.2, Langmuir is healthier. The calculated q_m values for NCCF/BC-0.2 and NCCF/BC-0.5, as introduced in Desk 7, had been 388.28 and 217.49 mg.g⁻¹, respectively, indicating their excessive adsorption capacities. The identical development is noticed which is the lower within the q_m worth because the biochar quantity will increase. For pattern NCCF, the Langmuir isotherm didn’t yield bodily lifelike parameters (q_m=2.29 × 10⁷ mg/g, R² = 0.6723) as a result of absence of a saturation plateau inside the measured focus vary.

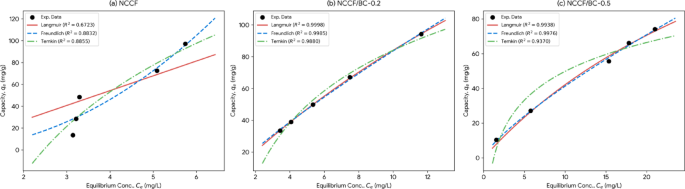

Non-linear matches for Langmuir, Freundlich, and Temkin fashions throughout (a) NCCF, (b) NCCF/BC-0.2, and (c) NCCF/BC-0.5.

The adsorption mechanism, within the presence of biochar, is extra sophisticated and favored by many elements. The presence of extra oxygen-containing purposeful teams; OH and C-O teams, and likewise fragrant C = C teams, which offer π-electrons required for the floor complexation with the Pb(II) ions, as proven if FT-IR part, Fig. 3. Furthermore, the improved porosity and the floor roughness^53,54,55,65 resulted in efficient floor space and promoted adsorption efficiency. The calculated most adsorption capacities for NCCF/BC-0.2 and NCCF/BC-0.5 are a lot increased than that for the naked NCCF, indicting the improved adsorption efficiency by introducing the biochar part within the magnetic adsorbent. The adsorption capability values are three-times and nine-times increased than that of the naked NCCF for biochar ratio of 0.5 and 0.2, respectively. Increased biochar ratio in NCCF/BC-0.5, nonetheless performs higher than the naked magnetic ferrite NCCF, however the ratio required to be optimized as a result of increased ratio cut back the porosity and the efficient floor space. The utmost adsorption capacities reported for biochar supplies, ready by the pyrolysis of various agriculture wastes, vary from 20 to 200 mg.g^− 153. On this research, introducing the magnetic ferrite to the biochar not solely added a magnetic character to the adsorbent and thus a sensible applicability, but in addition enhanced the adsorption efficiency, q_m for NCCF/BC-0.2 is 398.4 mg.g^− 1.

To judge the sensible competitiveness of NCCF/BC-0.2, q_m worth, 398.4 mg.g^− 1, is benchmarked towards different business and state-of-the-art sorbents below comparable situations. As summarized in Desk 8, NCCF/BC-0.2 reveals a capability practically double that of normal business activated carbons (150–250 mg/g) whereas working effectively at a low dosage ((:1.0text{:g/L})) and impartial pH ((:textual content{pH:}6.0text{–}7.0)). Though pristine metal-organic frameworks (MOFs) can obtain increased uncooked capacities, their industrial adoption is hindered by excessive manufacturing prices and poor hydrothermal stability. In distinction, the biochar composite developed on this work affords a positive stability of excessive uptake capability, low value, inexperienced synthesis, and operational robustness, confirming its real potential for industrial wastewater remediation.

Regeneration and interferences research

The potential of the adsorbent regeneration and the variety of its working adsorption cycles enormously affect the adsorbent applicability. On this work, the ready NCCF/BC-0.2 pattern is regenerated by being shaken in 1% HNO₃ resolution for 1 h. Determine 10A reveals the variation of the removing % of NCCF, NCCF/BC-0.2, and NCCF/BC-0.5 samples for the Pb(II) ion with successive 4 operation-regeneration cycles. It may be proven that by rising the biochar quantity within the magnetic composite, the adsorbet maintains extra its excessive adsorption efficiency particularly after the third cycle. ICP evaluation of the filtrates is carried out after 4 successive regeneration/reuse of the introduced samples. It was proven that no traces of Fe, Ni, Co, or Cu ions are current, indicating the steadiness of the proposed adsorbents.

The adsorption preformance of NCCF, NCCF/BC-0.2, and NCCF/BC-0.5 samples within the presence of interfering cations is examined by evaluating the efficiency in particular person Pb(II) ions resolution and an equimolar combination of Pb(II), Co(II), and Cd(II) ions, as proven in Fig. 10B. The biochar-based adsorbents peform the next efficiency in pure Pb(II) ions resolution, and exhibit a very good removing effectivity for the Pb(II) ions removing within the presence of interfering cations.

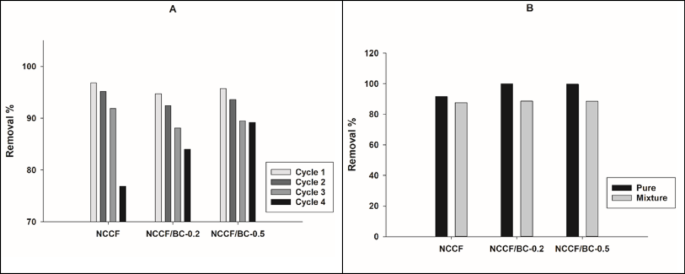

Variation of the removing % of NCCF, and NCCF/BC composites for the Pb(II) ion with (A) successive operation-regeneration cycles, and (B) in pure and blended Pb(II) ion options.
