Physicochemical characterization: the lack of the phytochemical corona
The profitable preliminary bioreduction of the metallic precursor salts by the plant extracts was confirmed through UV–Seen spectroscopy of the contemporary suspensions, which displayed attribute floor plasmon resonance (SPR) bands. Particularly, the non-calcined Ag NPs exhibited a definite plasmon peak at 463 nm. Equally, the ZnO NPs demonstrated a peak absorption at 356 nm, successfully confirming their synthesis. This peak aligns robustly with different green-synthesized ZnO NPs, which generally exhibit most absorbance between 326 and 380 nm10,11,Razia Sultana12. Moreover, as we’ve beforehand established4, major SPR peaks had been noticed at 224 nm for the Cu NPs and 300 nm for the Fe NPs. These absorption profiles conform to established ranges for biogenic CuO (220–265 nm) and iron oxide (230–301 nm) nanoparticles reported within the broader literature13,14,15,16,17,18. To guage the structural and chemical transformation induced by subsequent thermal remedy, a comparative characterization was carried out.
A comparative evaluation of the Fourier Remodel Infrared (FTIR) spectra offered important visible proof for the presence and subsequent destruction of the phytochemical corona (Fig. 1). The spectra of the non-calcined NPs exhibited outstanding absorption bands equivalent to natural useful teams derived from the biomolecules of the S. molesta and M. pigra extracts. Throughout the non-calcined Zn, Cu, and Fe intermediates, a constant signature peak was noticed close to 2166 cm-1, indicative of nitrile (C≡ N) or alkyne teams originating from the plant extracts. The non-calcined Zn NPs displayed outstanding uneven and symmetric carboxylate stretches at 1594 cm-1 and 1361 cm-1, respectively, alongside pronounced floor hydroxyl (O–H) stretching at 3389 cm-1. Equally, the non-calcined Cu NPs exhibited symmetric carboxylate stretching at 1361 cm-1 and a extremely complicated signature within the 1500–1650 cm-1 area, suggesting a dense natural corona wealthy in amide I or C = C fragrant rings. The non-calcined Fe NPs additionally confirmed the presence of the bio-corona by broad uneven (1594 cm-1) and symmetric (1374 cm-1) carboxylate stretches, although they displayed a notably shallower O–H stretching area (3000–3500 cm-1), indicating relative floor hydrophobicity in comparison with the opposite variants. The pure non-calcined Ag NPs additionally clearly retained natural floor markers, together with C = C stretching at 1505 cm-1 and C-O ester/alcohol stretching at 1016 cm-1, coexisting alongside attribute Ag–O bending vibrations between 553 and 678 cm-1. The project of those useful teams to a secure phytochemical corona is strongly supported by broader literature on biogenic nanomaterials, the place equivalent O–H, carboxylate, and fragrant stretching signatures are universally reported for strong plant-extract capping brokers19,20.

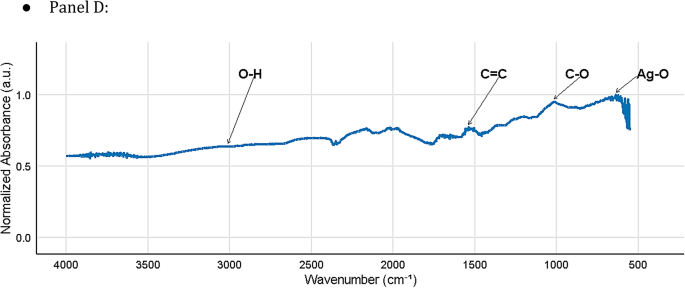

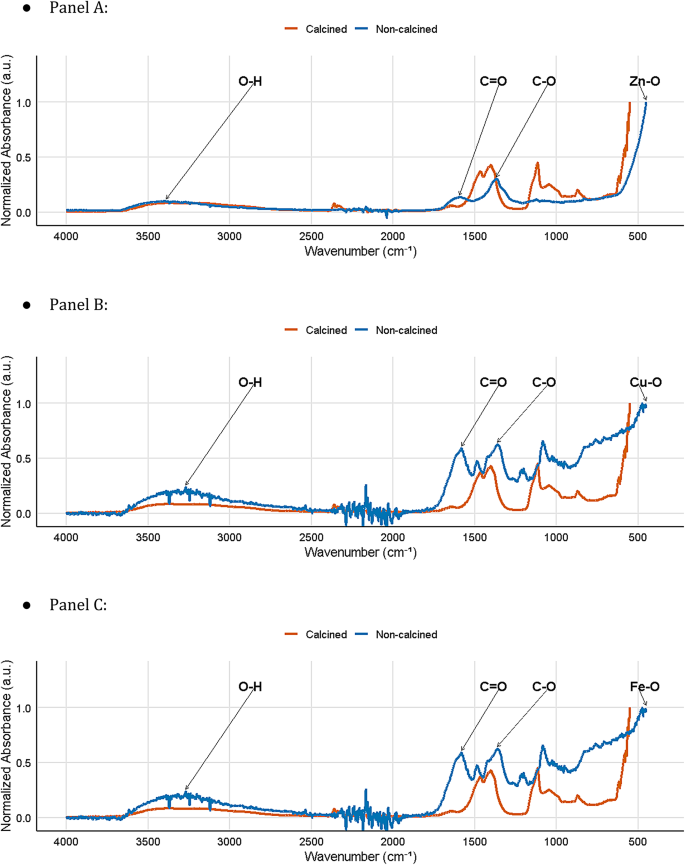

Comparative FTIR spectra of non-calcined and calcined nanoparticles. (A) Zinc nanoparticles displaying full lack of natural useful teams (carboxylates at 1361 and 1594 cm⁻1, O–H at 3389 cm⁻1) after calcination at 500 °C. (B) Copper nanoparticles displaying disappearance of dense amide/fragrant signatures (1500–1650 cm⁻1 area) post-calcination. (C) Iron nanoparticles displaying lack of carboxylate stretches (1374 and 1594 cm⁻1) following thermal remedy. (D) Silver nanoparticles maintained of their non-calcined state, retaining attribute C = C (1505 cm⁻1), C-O (1016 cm⁻1), and Ag–O (553–678 cm⁻1) signatures. Every panel presents spectra with baseline correction and normalized absorbance for clear comparability of natural and metal-oxide vibrational modes.
Following calcination at 500 °C (utilized solely to the Cu, Zn, and Fe samples), the natural bands had been considerably volatilized and absent within the spectra, leaving solely distinct low-frequency metallic–oxygen (M–O) vibrations. Particularly, the calcined Cu NPs displayed Cu–O vibrations within the 450–600 cm-1 area, whereas the calcined Zn NPs and Fe NPs exhibited their respective metallic–oxygen bond formations beneath 500 cm-1 and 600 cm-1.
Whereas detailed morphological imaging has been beforehand reported in our related literature, Scanning Electron Microscopy (SEM) evaluation established the baseline sizes and agglomeration dynamics throughout the synthesized states, straight reflecting their respective processing circumstances. As an example, the non-calcined Ag NPs, which had been recovered through high-speed centrifugation (14,000 rpm) and subjected solely to delicate drying at 80 °C, exhibited a well-defined, minimally agglomerated common particle dimension of 110 nm. This delicate thermal processing efficiently preserved the steric stabilization offered by the S. molesta phytochemical corona. In distinction, following high-temperature calcination (500 °C), the entire combustion of the capping layer on the remaining transition metals prompted extreme structural shifts and thermal agglomeration within the ensuing metallic oxides. The calcined ZnO NPs exhibited a heterogeneous distribution of shapes averaging 81 nm (starting from 35 to 164 nm), in step with established biogenic dimensions21, Shanthi22,23. The calcined CuO NPs fashioned various, extremely agglomerated shapes averaging 108 nm in diameter, whereas the FeO NPs exhibited clumped, multi-structured formations averaging 82 nm (starting from 41 to 140 nm). These calcined structural dimensions mirror our earlier characterizations4 and correlate nicely with biogenic metal-oxide sizes reported globally15,24,25,26,27.
Lastly, X-ray Diffraction (XRD) evaluation confirmed the crystalline nature of the synthesized formulations. The non-calcined Ag NPs demonstrated a traditional Face-Centered Cubic (FCC) construction with outstanding diffraction peaks at 38.09° (111), 46.22° (200), 54.80° (220), 64.49° (220), and 74.33° (311). For the thermally handled samples, calcination efficiently yielded extremely crystalline, phase-pure metal-oxides. Particularly, the CuO NPs exhibited a monoclinic construction (JCPDS 45–0937) with key peaks at 32.59° (110), 35.6° (002), 36.49° (111), and 38.73° (202), yielding a median crystallite dimension of 30.68 nm through the Debye–Scherrer equation28. Moreover, the ZnO NPs displayed a hexagonal wurtzite crystal construction with outstanding peaks at 31.707° (100), 34.398° (002), and 36.186° (101), alongside a bandgap vitality of three.2 eV29.
Antioxidant exercise is primarily depending on the uncalcined phytochemical layer
The antioxidant capability of the synthesized NPs was quantified utilizing the 1,1-diphenyl-2-picryl hydrazyl (DPPH) radical scavenging assay, with outcomes expressed as milligrams of Trolox equivalents (TE) per gram of pattern (Fig. 2). The non-calcined NPs retained vital antioxidant potential, confirming the presence of a bioactive phytochemical corona derived from the plant extract. The non-calcined Ag NPs exhibited the very best antioxidant exercise (42.08 ± 2.01 mg TE/g). Substantial radical scavenging capability was additionally noticed for the non-calcined Cu NPs (14.64 ± 0.38 mg TE/g), Zn NPs (11.05 ± 0.38 mg TE/g), and Fe NPs (9.23 ± 0.25 mg TE/g). In stark distinction, thermal calcination considerably abolished this exercise throughout the Cu, Zn, and Fe samples. The lack of antioxidant efficacy within the calcined metallic oxides additional corroborates that the free-radical scavenging potential of biogenic NPs is essentially mediated by the thermolabile, natural capping layer reasonably than the inorganic metallic core itself.

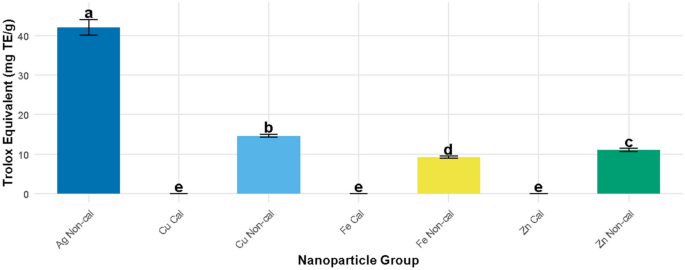

In vitro antioxidant exercise (DPPH assay) of synthesized nanoparticles. Values are introduced as imply ± SE (n = 4). Totally different lowercase letters above bars denote statistically vital variations (p < 0.05) primarily based on one-way ANOVA adopted by Tukey’s post-hoc take a look at. Non-calcined silver nanoparticles (Ag Non-cal) confirmed the very best antioxidant exercise (42.08 mg TE/g). Thermal calcination uniformly abolished the intrinsic free-radical scavenging potential throughout all calcined samples (Cu Cal, Zn Cal, Fe Cal), with exercise indistinguishable from the damaging management (letter e).
One-way ANOVA revealed vital variations among the many nanoparticle teams (F(7, 24) = 145.6, *p* < 0.001). Tukey’s post-hoc take a look at (Fig. 2) confirmed that non-calcined Ag NPs (42.08 mg TE/g) exhibited considerably larger antioxidant exercise in comparison with all non-calcined Cu, Zn, and Fe teams (*p* < 0.001). Among the many non-calcined transition metallic NPs, Cu (14.64 mg TE/g) confirmed considerably larger exercise than Zn (11.05 mg TE/g) and Fe (9.23 mg TE/g) (*p* < 0.05).
Antibacterial efficacy is ruled by metallic id, not inexperienced capping
To find out whether or not the phytochemical capping layer or the core metallic dictates cytotoxicity, each calcined and non-calcined NPs had been examined in opposition to E. coli, S. aureus, and P. aeruginosa. Remarkably, Fe, Cu, and Zn NPs (in each calcined and non-calcined states) failed to provide any seen zones of inhibition in opposition to the examined strains, even at a large screening focus of 1000 µg/mL. This means that the plant-derived natural layer alone is inadequate to induce bacterial cell dying for these particular supplies (Fig. 3B-D). This lack of inhibition occurred regardless of the bacterial strains displaying clear susceptibility to the streptomycin optimistic management on the exact same plates. This reveals that the natural plant layer by itself can’t kill micro organism if the core metallic isn’t extremely reactive.

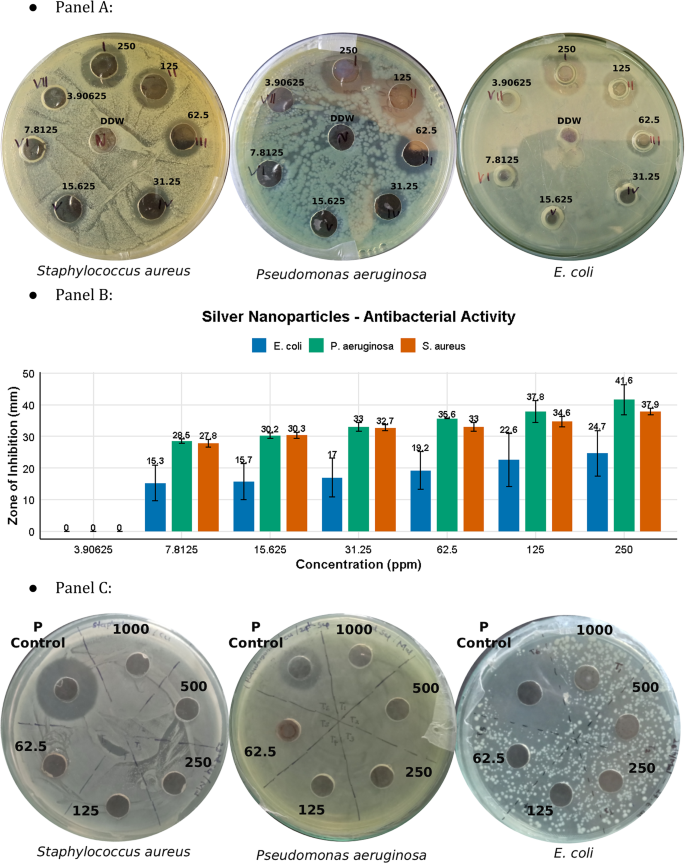

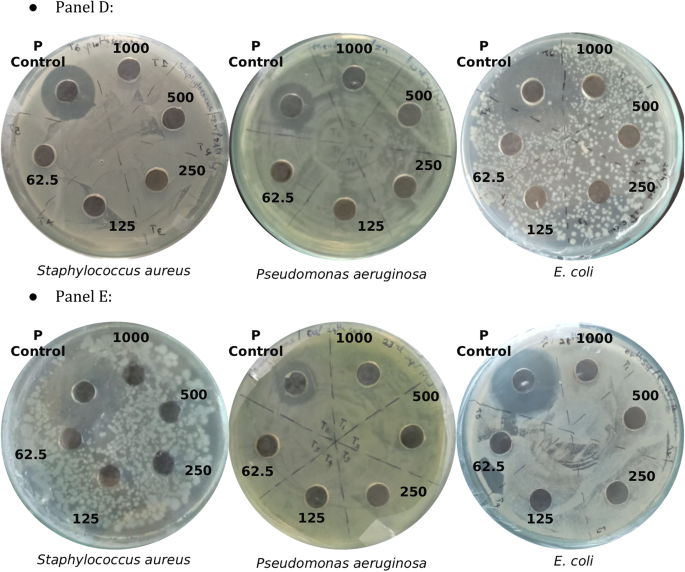

Antibacterial efficacy of biogenic nanoparticles. (A) Agar nicely diffusion assay of non-calcined silver nanoparticles demonstrating dose-dependent antimicrobial exercise in opposition to E. coli, S. aureus, and P. aeruginosa at concentrations from 7.8 to 250 ppm. (B) Quantitative Zone of Inhibition (ZOI) diameters (mm) displaying dose-dependent antibacterial exercise in opposition to all three bacterial strains. Values are introduced as imply ± SD (n = 3). (C–E) Non-calcined copper, zinc, and iron nanoparticles (1000 µg/mL) displaying no observable zones of inhibition in opposition to all examined strains, regardless of the presence of the intact phytochemical corona and validated bacterial susceptibility to the streptomycin optimistic management.
Alternatively, the non-calcined Ag NPs demonstrated potent antibacterial efficacy (Fig. 3A). To quantify this exercise, a two-fold serial dilution assay was carried out ranging from an preliminary focus of 250 ppm. The non-calcined Ag NPs exhibited a minimal inhibitory focus (MIC) of seven.8 ppm, efficiently producing clear zones of inhibition even at this extremely dilute focus. This confirms that antimicrobial motion in these biogenic techniques is primarily metal-dependent (possible pushed by Ag + ion launch) reasonably than a common property of green-synthesized nanomaterials.
The dose–response relationship was additional quantified by measuring ZOI diameters for all three bacterial strains (Fig. 3B). On the highest focus (250 ppm), S. aureus exhibited the most important ZOI (14.8 mm), adopted by P. aeruginosa (14.2 mm) and E. coli (12.3 mm). A transparent dose-dependent discount in ZOI was noticed for all strains, with exercise approaching baseline at 7.8 ppm, confirming the minimal inhibitory focus (MIC). No measurable inhibition was noticed at 3.9 ppm.
Ecological affect: NPs exhibit excessive biocompatibility in soil microbiomes
The broader ecological affect of the NPs was evaluated by monitoring cumulative soil microbial respiration (CO₂ evolution in moles) over a 4-week incubation interval at publicity doses of 500, 750, and 1000 ppm (Fig. 4). To account for repeated measurements taken from the identical microcosms over time, knowledge had been analyzed utilizing a linear mixed-effects mannequin with nanoparticle dose, incubation week, and their interplay as fastened results, and microcosm id as a random impact.

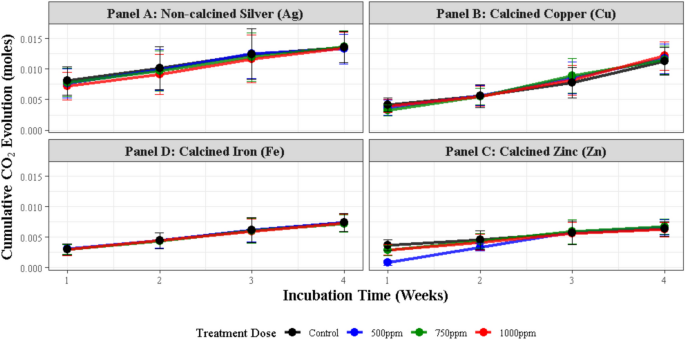

Cumulative CO₂ evolution (moles) over a 4-week incubation interval in soil microcosms handled with (A) non-calcined Ag, (B) calcined Cu, (C) calcined Zn, and (D) calcined Fe nanoparticles throughout various doses (500, 750, 1000 ppm) versus an untreated management. Knowledge had been analyzed utilizing a linear mixed-effects mannequin with microcosm id as a random impact to account for repeated measurements. No matter localized antibacterial properties or core metallic id, long-term cumulative respiration successfully stabilized to baseline ranges by Week 4.
For calcined Zn NPs, the mannequin revealed a statistically vital interplay between incubation week and NP dose (F(9, 32) = 7.618, *p* < 0.001). Nonetheless, following minor preliminary fluctuations, respiration quickly stabilized. By Week 4, CO₂ evolution within the 1000 ppm Zn remedy (0.00206 ± 0.00001 mol) confirmed no vital distinction in comparison with the untreated management (0.00208 ± 0.00005 mol) primarily based on Tukey’s post-hoc evaluation (*p* = 0.992).
For calcined Cu NPs, the mannequin confirmed that NP dose had no vital predominant impact on cumulative CO₂ evolution (F(3, 30) = 0.800, *p* = 0.504). At Week 4, the very best dose of Cu NPs (1000 ppm) produced 0.00415 ± 0.00022 mol of CO₂, remaining statistically indistinguishable from the management (0.00405 ± 0.00018 mol, Tukey’s *p* = 0.934).
For calcined Fe NPs, the mannequin confirmed that NP dose had no vital predominant impact on cumulative CO₂ evolution (F(3, 32) = 0.936, *p* = 0.435). At Week 4, the very best dose of Fe NPs (1000 ppm) produced 0.00250 ± 0.00 mol of CO₂, remaining statistically indistinguishable from the management (0.00250 ± 0.00 mol, Tukey’s *p* = 0.630). Mannequin assumptions of normality and homoscedasticity had been validated through Q-Q plots and residuals versus fitted plots (offered in Supplementary Determine S1).
Strikingly, an equivalent development of environmental biocompatibility was noticed for the non-calcined Ag NPs. Regardless of exhibiting potent localized antibacterial exercise in vitro (Part “Antibacterial efficacy is governed by metal identity, not green capping“), the introduction of Ag NPs into the complicated soil matrix resulted in no total suppression of microbiome respiration over one month. The linear mixed-effects mannequin confirmed no vital impact of Ag dose on cumulative CO₂ evolution (F(3, 32) = 1.306, *p* = 0.289). At Week 4, the very best dose of Ag NPs (1000 ppm) produced 0.00450 ± 0.00006 mol of CO₂, remaining statistically indistinguishable from the management (0.00448 ± 0.00003 mol, Tukey’s *p* = 0.999).
The stabilization of cumulative CO₂ respiration to baseline ranges means that these biogenic nanoparticles don’t trigger sustained suppression of soil heterotrophic metabolism beneath the examined circumstances. This offers preliminary proof for his or her short-term ecological compatibility and helps additional investigation into their agricultural purposes.
It is very important observe that whereas cumulative CO₂ respiration offers beneficial details about total microbial metabolic exercise, it doesn’t reveal adjustments in microbial neighborhood composition, variety, or the relative abundance of particular useful teams. The absence of variations in CO₂ respiration doesn’t definitively display the absence of affect on the microbiome, as a poisonous occasion might kill delicate taxa which can be then metabolically changed by resilient organisms. Moreover, this research didn’t examine nanoparticle destiny, transformation, dissolution, or speciation within the soil matrix. The conclusions concerning ecological security are subsequently confined to the precise endpoint and circumstances evaluated.
Abstract of calcination results
To consolidate our findings on the dichotomy between the phytochemical capping layer and the core metallic, Desk 1 offers a complete overview of the physicochemical and organic shifts noticed throughout all nanoparticles. This abstract illustrates that the destruction of the natural corona universally neutralizes free-radical scavenging talents, whereas localized cytotoxicity (antibacterial motion) and ecotoxicity (soil respiration) stay primarily depending on the precise metallic id reasonably than the presence of the inexperienced coating.
