Evidence of an amorphous intermediate phase during non-classical calcium hydroxide crystallization from cementitious pore solutions

The formation of ACH from separated cementitious pore resolution

Portlandite is undetectable on the floor of hydrating cement particles in the course of the first hour of cement hydration^12,15,46. Consequently, it may be inferred that the preliminary formation of CH should happen inside the aqueous section. To investigate the composition of the aqueous section throughout cement hydration, it’s essential to take away the strong constituents, such because the cement and the bigger hydration merchandise that predominantly nucleate on the surfaces of dissolving particles, by separating the pore resolution. A number of customary strategies will be employed to separate the pore resolution from a cement paste, together with centrifugation, dead-end filtration, and steady crossflow filtration^{47,48,49,50,51}. Following separation, elemental evaluation of the separated pore resolution is often carried out utilizing optical emission spectroscopy with inductively coupled plasma (ICP-OES)^49,51,52. In our experiments, we combined technical Portland cement with ultrapure water containing no components. We then separated the pore resolution from the cement paste after 15 min utilizing dead-end filtration as soon as the preliminary hydrate section formation had subsided. We opted for dead-end filtration as a result of, in contrast with the opposite separation strategies talked about, it enabled us to rapidly acquire bigger volumes of the pore resolution in its unique composition. Initially, we anticipated that the obtained clear pore resolution would comprise no nanoparticles after filtration, as nanostructured ettringite, nano-AFm, and nano-C-S-H particles sometimes nucleate on the floor of the dissolving cement particles and are solely stabilized and dispersed within the pore resolution within the presence of stabilizing components reminiscent of dispersants⁵². Nevertheless, opposite to our expectations, we noticed ACH nanoparticles beneath the TEM after we utilized the separated pore resolution to a TEM grid at room temperature and allowed it to dry (see Fig. 1a–c and SI, Figs. S2–S4). As shall be demonstrated under, these particles don’t symbolize the native state of CH within the pore resolution however are as a substitute fashioned as an intermediate section throughout drying of the pore resolution on the TEM grid.

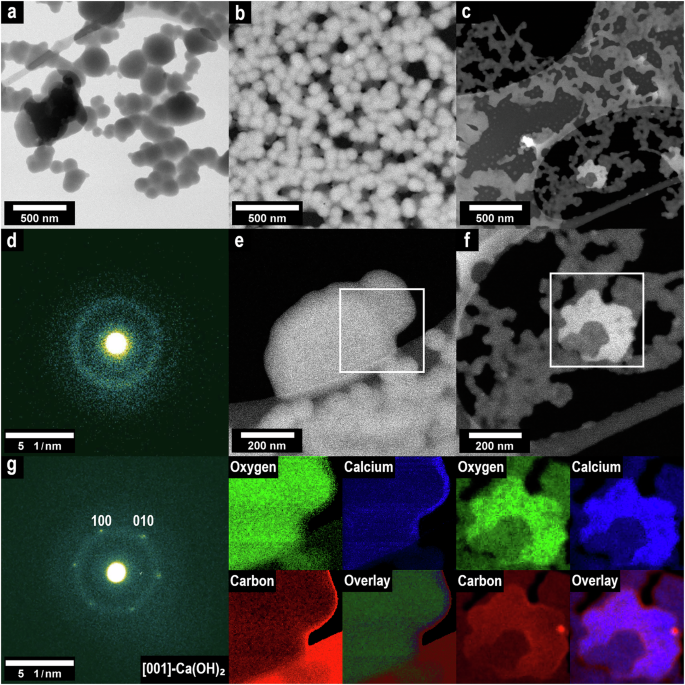

Fig. 1: Electron micrographs of dried cementitious pore solution separated 15 min after the start of hydration, along with SAED and EELS measurements conducted in the highlighted areas. — **Fig. 1: Electron micrographs of dried cementitious pore resolution separated 15 min after the beginning of hydration, together with SAED and EELS measurements performed within the highlighted areas.**

The spherical nanoparticles detected utilizing TEM have diameters between 100 and 200 nm (see SI, Fig. S3) and happen in agglomerates (see SI, Fig. S29). The fundamental composition of the particles was analyzed utilizing EELS (see Fig. 1e, f and SI, Figs. S28 and S30). The particles encompass calcium and oxygen and have a core-shell construction. Provided that the core reveals low calcium however excessive oxygen indicators, that is according to a core primarily composed of water. In distinction, the shell accommodates a better focus of calcium ions (see Fig. 1e). As a result of the pattern was dealt with within the air, a carbon layer fashioned on the outermost fringe of the particles (see Fig. 1f). Throughout the quick time whereas the pore resolution dried on the TEM grid, the particle surfaces consequently reacted with atmospheric CO₂. A low-dose SAED sample (dose 0.62 e⁻/Å²/s) confirmed solely a diffuse halo, revealing the amorphous nature of the particles (see Fig. 1d). When uncovered to the electron beam at a better dose price (2.40 e⁻/Å²/s) for a short while, the particles quickly crystallize into portlandite, as evidenced by the looks of attribute SAED reflections of crystalline CH (see Fig. 1g). This beam-induced crystallization displays the excessive sensitivity of the hydrated amorphous particles to greater dose charges. Beneath intense irradiation, the amorphous particles bear structural adjustments because of radiolysis⁴². Notably, the portlandite reflections emerge inside the diffuse halo of the unique amorphous section, indicating that each phases share equivalent d-spacings. This strongly helps the conclusion that the amorphous precursor is structurally associated to portlandite. Furthermore, these observations present extra nanoscale structural proof for the non-crystalline intermediate section of CH, first reported by Rodriguez-Navarro and coworkers^41,42.

We additional examined the ACH particles utilizing SEM. Throughout SEM examination, we noticed a steady community of roughly 1 μm spheres (see Fig. 2a and SI, Fig. S31), alongside small scattered ACH particles (see SI, Fig. S32) and their bigger aggregates recognized beforehand beneath the TEM (see SI, Fig. S33). These particles have been uniformly formed, comparable in dimension, and interconnected at their edges. Notably, they started to deform at their edges because of water loss throughout publicity to the electron beam. Some aggregates have been even embedded in a layer of dried potassium sulfate (see SI, Fig. S34). The fundamental composition of the spherical particles was decided by means of vitality dispersive X-ray (EDX) measurements (see Fig. 2b and SI, Figs. S35–S38). The particles primarily encompass oxygen and calcium, in addition to a small quantity of carbon, ensuing from unavoidable floor carbonation in accordance with TEM outcomes, confirming that the noticed particles are certainly ACH particles. Different detected components (see SI, Tables S2 and S3) originate from the floor (TEM grid, silicon wafer) on which the pattern was utilized (copper, silicon), or from dissolved sulfate species within the pore resolution (potassium, sodium, and sulfur).

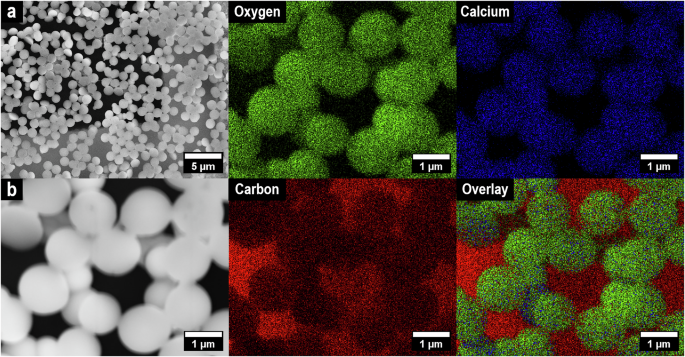

Fig. 2: SEM-EDX data of ACH particles observed after depositing a cementitious pore solution, separated 15 min after the start of hydration, onto a TEM grid. — **Fig. 2: SEM-EDX knowledge of ACH particles noticed after depositing a cementitious pore resolution, separated 15 min after the beginning of hydration, onto a TEM grid.**

Impression of pattern preparation on the looks of the ACH nanoparticles

ACH from cementitious and mannequin supersaturated CH options

We first examined whether or not the method used to separate the cementitious pore resolution or the w/c ratio utilized in mixing the cement affected the observations beneath the TEM. We detected spherical ACH nanoparticles from all cementitious pore options that we remoted and dried. Neither the separation technique (see Fig. 3a, b and SI, Figs. S5–S8) of the pore resolution nor the chosen w/c ratio (see Fig. 3c and SI, Figs. S9 and S10) noticeably affected the looks of the ACH nanoparticles within the TEM micrographs. Experiments performed at w/c = 0.5 and w/c = 0.75 (see Fig. 3c) yielded ACH particles that have been morphologically equivalent to these noticed at w/c = 1.0 (see SI, Figs. S9 and S10), confirming that the looks, morphology, and formation mechanism of ACH are insensitive to the w/c ratio inside this vary. To find out whether or not the ACH nanoparticles are a attribute function of a cementitious system or will be obtained from any supersaturated CH system, we additionally performed varied mannequin experiments designed to create supersaturated CH options. Extra data relating to these experiments will be discovered within the Supplementary Information. Amorphous spherical nanoparticles have been present in supersaturated CH options obtained by dissolving calcium oxide (CaO) or calcium metallic (Ca) in water (see Fig. 3d, e and SI, Figs. S11 and S12), by combining a calcium chloride (CaCl₂) resolution with a sodium hydroxide (NaOH) resolution (see SI, Fig. S13), or by separating the pore resolution of combined slaked lime or C₃S (see Fig. 3f and SI, Fig. S14). Consequently, at any time when a supersaturated CH resolution is dried on a TEM grid, spherical amorphous nanoparticles kind.

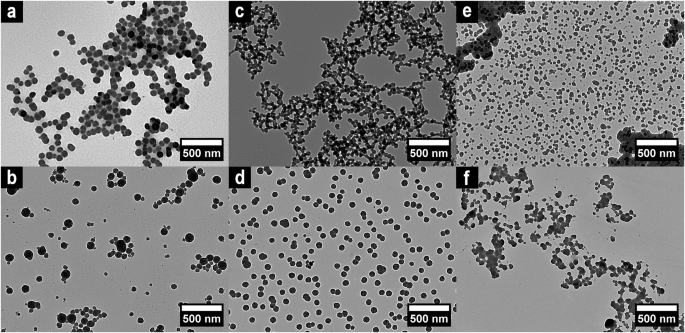

Fig. 3: Electron micrographs of ACH nanoparticles formed during drying of different supersaturated CH solutions on a TEM grid. — **Fig. 3: Electron micrographs of ACH nanoparticles fashioned throughout drying of various supersaturated CH options on a TEM grid.**

Nevertheless, the nanoparticles noticed in electron micrographs of the cementitious pore resolution various in dimension. Whereas nearly all of the particles ranged between 100 and 200 nm (see SI, Fig. S3), we additionally discovered considerably bigger particles measuring as much as 1 μm (see SI, Fig. S3), because the hydrated amorphous particles are inclined to agglomerate strongly. The bigger particles will need to have fashioned in the course of the gradual drying course of on the TEM grid after the separation reasonably than in resolution, since they may not have handed by means of the filter (0.45 μm). Importantly, ACH particles might even be noticed when an undersaturated CH resolution (0.01 M) was utilized to a TEM grid (see SI, Fig. S15), in all probability as a result of the answer turns into supersaturated whereas drying on the grid.

TEM preparation strategies

We additionally noticed noticeable variations within the look of the ACH nanoparticles when the TEM grid was ready utilizing completely different strategies. 4 completely different customary preparation protocols have been examined (see SI, Fig. S1): (1) drop-casting, (2) blotting, (3) quenching with ethanol as described by Rodriguez-Navarro and coworkers⁴², and (4) cryo-TEM preparation. The preparation technique considerably influenced the form, dimension, and agglomeration diploma of the noticed ACH nanoparticles (see Fig. 4). That is according to the well-documented conduct of two different inorganic methods that likewise don’t crystallize classically—gypsum (CaSO₄·2H₂O)^53,54 and calcium carbonate (CaCO₃)^39,40—for which gradual drying and chemical quenching (reminiscent of with ethanol) have been proven to introduce extreme artifacts and to strongly affect crystallization kinetics of those supplies, thereby obscuring the native state of the crystallizing resolution⁵⁵.

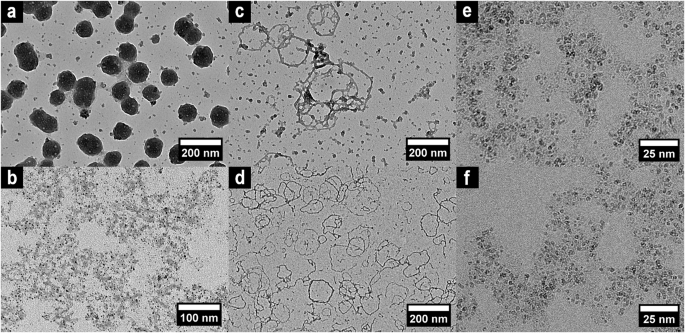

Fig. 4: Electron micrographs of ACH nanoparticles observed on differently prepared TEM grids. — **Fig. 4: Electron micrographs of ACH nanoparticles noticed on otherwise ready TEM grids.**

Impact of TEM preparation–blotting

When the samples have been ready by blotting the cementitious pore resolution onto a TEM grid, the grid grew to become coated with quite a few spherical ACH particles (see Fig. 4a and SI, Fig. S16). Because the drying price will depend on a number of elements, reminiscent of humidity, temperature, and ambiance—none of which have been managed, besides that each one samples have been ready at room temperature—the spheres can develop to completely different sizes and agglomerate to various levels. In some excessive instances, this even led to the formation of a densely packed percolated community of particle aggregates on the TEM grid (see SI, Fig. S17). The completely different observations throughout samples are thus attributable to uncontrolled blotting parameters that led to a big variability within the drying price and are according to a formation mechanism involving a dense liquid section by way of liquid-liquid section separation in the course of the drying course of. Conducting a mechanistic examine with a standardized drying protocol in a humidity-controlled chamber can be of explicit curiosity, as it will enable systematic adjustment of the drying price to make clear the precise mechanism behind ACH formation.

Nonetheless, we noticed distinct levels that the ACH undergoes on its path to crystalline CH, which occurred concurrently inside the identical pattern (see SI, Figs. S9 and S10). Regardless of our greatest efforts to keep up constant hydration and preparation circumstances, ACH appeared in varied shapes throughout samples ready utilizing equivalent protocols. We postulate that variations within the drying price, attributable to native variations within the thickness of the liquid movie layer, preserved ACH at distinct levels of its transformation into crystalline CH, permitting us to look at the development of CH crystallization (see Fig. 5). The ACH nanoparticles (see Fig. 5a) can mixture into far more complicated agglomerate constructions comprising particles of various sizes (see Fig. 5b and SI, Fig. S22). As the first particles forming the agglomerates grew to become much less spherical, more and more condensed and coalesced aggregates have been fashioned (see Fig. 5c and SI, Figs. S23 and S24). In the end, along with the spherical ACH nanoparticles, contiguous constructions emerge (see Fig. 5d, e and SI, Figs. S25 and S26), which develop collectively and progressively undertake the attribute hexagonal form of CH crystals that might kind later (see Fig. 5f). In conclusion, the ACH transforms into crystalline CH when the residual water evaporates from a skinny movie of the cementitious pore resolution deposited on a TEM grid. The aggregation of spherical particles into hexagonal shapes, attribute of CH fashioned in cementitious methods, signifies that this course of will be categorized as a “non-classical” crystallization (see Fig. 5g). The mechanism of CH crystallization from cementitious pore options is thus according to predictions made in earlier research involving mannequin methods by Rodriguez-Navarro and coworkers and Madeja et al.^42,43.

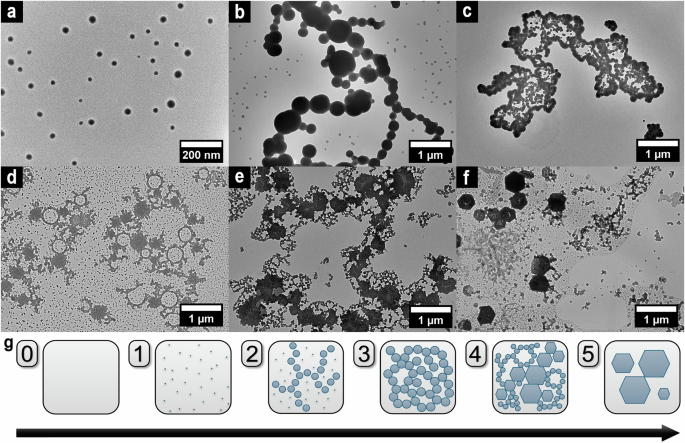

Fig. 5: Multi-stage “non-classical” crystallization process of CH during drying on a TEM-grid. — **Fig. 5: Multi-stage “non-classical” crystallization means of CH throughout drying on a TEM-grid.**

Whereas we can not present direct in situ proof for ACH formation inside the constrained, water-saturated pores of hydrating cement paste, some findings counsel that the “non-classical” crystallization pathway mentioned right here can also be related to actual cement methods. First, you will need to observe that though the pore resolution accommodates many international ions at excessive concentrations, the CH crystallization course of seems to proceed equally to that noticed in pure mannequin methods with out extra ions^42,43. Furthermore, the spherical particles noticed on the surfaces of hydrating C₃S and OPC in varied SEM research^{29,30,31,32,33} are most plausibly reinterpreted as ACH fashioned throughout pattern preparation, reasonably than as native floor species. Moreover, portlandite is thought to kind preferentially inside capillary pores and cavities in hardening cement paste^25,56,57,58, reasonably than uniformly on the surfaces of cement particles, as different hydrate phases do⁵⁹. This preferential location and the ensuing non-uniform, clustered distribution of crystalline portlandite in hardened cement paste counsel {that a} transient ACH stage forming at these interfaces could facilitate portlandite crystallization in these areas. Nevertheless, we emphasize that confirming this mechanism in cement paste would require future investigations utilizing superior in situ scattering and microscopy strategies, that are past the scope of this examine.

Impact of TEM preparation–drop casting

A completely completely different image emerged when the cementitious pore resolution was drop-casted onto a TEM grid. The TEM grid gave the impression to be virtually empty beneath the electron microscope. Solely at excessive magnifications, tiny particles (lower than 20 nm) might be detected, although many of those particles have been already extremely agglomerated (see Fig. 4b and SI, Fig. S18). In distinction to the blotting technique, the considerably quicker drying course of doesn’t enable the ACH particles enough time to develop to sizes of 100 nm. This means that the ACH particles in resolution have to be very small, maybe even inside the dimension vary anticipated for prenucleation clusters (lower than just a few nanometers)⁶⁰. Therefore, the TEM pattern preparation technique governs the observations in TEM micrographs reasonably than the intrinsic properties of the nanoparticles or the traits of the pore resolution.

Impact of TEM preparation–ethanol quenching

The quenching with ethanol earlier than blotting has been reported to attenuate artifacts throughout pattern preparation and supply TEM photographs with nanostructural options of metastable precursor phases just like these noticed in cryo-TEM⁴². Nevertheless, for the technical cement, this protocol brought about the precipitation of assorted potassium and calcium sulfates, reminiscent of arcanite (Ok₂SO₄) or syngenite (({{{{rm{Ok}}}}}_{2}{{{rm{Ca}}}}{({{{{rm{SO}}}}}_{4})}_{2}cdot {{{{rm{H}}}}}_{2}{{{rm{O}}}})), from the cementitious pore resolution. The TGA-MS measurements of the remoted precipitate (see SI, Fig. S52), revealed, apart from the water lack of syngenite, a second weight reduction occasion at 410 °C, which is shifted by 50 °C in comparison with the calcination stage of portlandite (460 °C)⁴⁷. Moreover, the FTIR spectrum of the dried precipitate displayed a definite peak comparable to hydroxide vibrations round 3600 cm⁻¹, alongside the anticipated vibrational modes of arcanite and syngenite (see SI, Fig. S68). Notably, the powder X-ray diffractogram of the precipitate confirmed, along with the reflexes of arcanite and syngenite, very broad reflexes on the positions the place the reflexes of portlandite are anticipated (see SI, Fig. S60). These outcomes point out that quenching cementitious pore options with ethanol preserves portlandite in an amorphous or no less than partially crystalline state.

To stop the formation of an undesired precipitate, we repeated the ethanol-quenching experiment utilizing a pore resolution of the pure section C₃S as a substitute of technical cement. After quenching with ethanol, no precipitate fashioned since no sulfates are dissolved within the C₃S pore resolution, which allowed us to arrange the TEM grid by blotting. Apparently, the TEM photographs revealed not solely particular person spherical ACH nanoparticles but additionally ring-like hexagonal agglomerates composed of main spherical particles, though it remained unclear whether or not these constructions have been within the means of formation or dissolution (see Fig. 4c and SI, Fig. S19). Comparable constructions have been additionally noticed in TEM photographs of undersaturated CH options (0.1 M) that have been equally quenched with ethanol (see Fig. 4d and SI, Fig. S20). Rodriguez-Navarro and coworkers beforehand discovered comparable constructions⁴². Nevertheless, their outcomes couldn’t be replicated within the cryo-TEM examine performed by Madeja et al.⁴³. This discrepancy led Madeja et al. to imagine that quenching with ethanol may play a big position within the formation of those distinctive hole constructions. Including ethanol adjustments the dielectric fixed and exercise of water⁵⁵, which in flip impacts the solubility and drying price of the pore resolution. Within the case of portlandite, this alteration presumably induces the formation of ring-like hexagonal constructions that aren’t obtained when analyzing a pure pore resolution. Notably, these outcomes reveal that customary solvent-exchange protocols considerably alter the solvation atmosphere, ensuing within the formation of ring-like artifacts. This means that constructions beforehand recognized as native precursors within the literature could, actually, be solvent-induced precipitates, highlighting the significance of in-situ strategies and cryo-TEM for characterizing crystallizing phases⁵⁵.

Cryo-TEM imaging of the pore resolution

Because of the uncertainties related to customary pattern preparation strategies, Ilett et al. proposed utilizing cryo-TEM strategies as essentially the most dependable strategy for learning the earliest levels of crystallization. Though cryo-TEM strategies can’t be wholly artifact-free, they arguably present essentially the most correct illustration of the native state of the particles in resolution⁵⁵. Consequently, we used cryo-TEM to find out the precise form of the ACH nanoparticles within the pore resolution. Within the vitrified resolution, considerably smaller particles (5–10 nm) might be discovered, though these particles have been already extremely agglomerated (see Fig. 4e, f and SI, Fig. S21). These findings have been just like these obtained in our experiments by which the TEM grid was ready by the drop-casting technique (see Fig. 4b and SI, Fig. S18). Accordingly, the significantly bigger particles (100–200 nm) noticed beneath the standard TEM after drying (see Fig. 1 and SI, Fig. S3) solely develop to their dimension in the course of the drying course of on the TEM grid and don’t symbolize the native state of the particles in resolution.

Cryo-HRTEM imaging of the pore resolution

To reduce the formation of drying artifacts throughout vitrification and to protect the native state of the pore resolution to the best extent, we ensured that the contact time of the answer with the filter paper throughout blotting whereas vitrifying extra samples was stored as quick as attainable. We subsequently examined the samples ready on this method utilizing a high-resolution cryo-TEM. This time, imaging was carried out completely in areas of vitreous ice inside the holes of the lacey carbon movie—areas that weren’t in touch with the filter paper throughout blotting and due to this fact remained repeatedly submerged in an aqueous layer all through pattern preparation. Beneath these circumstances, no ACH particles have been detected. As an alternative, solely small clusters with obvious sizes of 1–2 nm have been noticed (see Fig. 6b, c). Quick Fourier Remodel (FFT) patterns of the corresponding HRTEM photographs revealed the presence of a calcium sulfate section (insets in Fig. 6b, c). Notably, HRTEM photographs acquired at decrease magnification (×250,000) and, correspondingly, a decrease electron dose price per recorded space revealed the presence of structurally ill-defined, weakly ordered clusters with sizes under 1 nm (see Fig. 6a). These clusters exhibited no clear lattice fringes, indicating a predominantly amorphous nature. This means that, upon imaging at greater magnification (×380,000) and elevated dose charges, these sub-nanometer clusters underwent electron-beam-induced crystallization, ensuing within the formation of crystalline calcium sulfate nanoparticles. These particles will be categorized as prenucleation clusters, which have beforehand been reported for calcium sulfate^54,61.

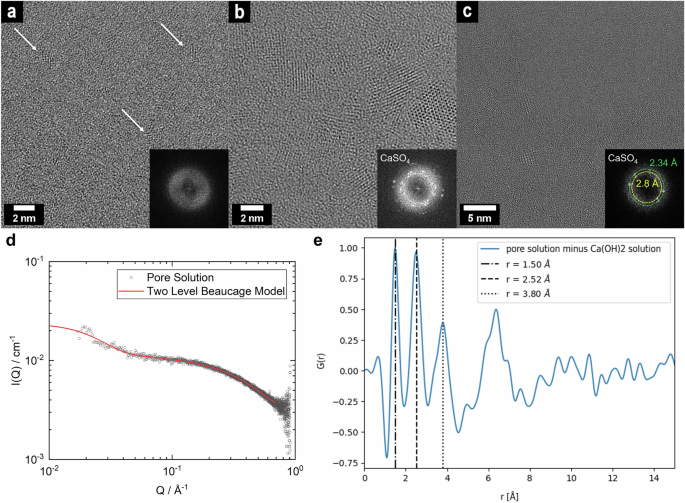

Fig. 6: Structural characterization of separated cementitious pore solution. — **Fig. 6: Structural characterization of separated cementitious pore resolution.**

This discovering results in the next conclusions: each CH and calcium sulfate kind from cementitious pore options by way of “non-classical” crystallization pathways. Though each phases are nominally supersaturated within the pore resolution in the course of the first hour of cement hydration (see SI, Desk S4), solely prenucleation clusters of calcium sulfate have been discovered, suggesting that the “non-classical” crystallization pathways for these two minerals are essentially completely different⁶². Whereas calcium sulfate kinds small prenucleation clusters in resolution, no CH precursor species have been detected above the detection restrict of cryo-HRTEM (~1 nm). These outcomes are most according to CH being current completely as totally solvated ions or ion pairs. Nevertheless, you will need to observe that this conclusion is predicated solely on the non-detection of CH-containing species and due to this fact represents a robust inference reasonably than definitive proof of their absence. The absence of ACH within the cryo-HRTEM measurements contrasts with the findings of Madeja et al., who detected ACH in cryo-TEM photographs⁴³. This discrepancy will be rationalized by a number of key variations between the 2 research. First, Madeja et al. employed customary cryo-preparation involving regular blotting, in distinction to our cryo-HRTEM preparation technique, the place we aimed to attenuate blotting depth. Second, their samples have been drawn from pure mannequin methods (CaCl₂ + NaOH), whereas the cementitious pore resolution accommodates important concentrations of different ions (see SI, Desk S4), which might kinetically inhibit CH nucleation. Third, the diploma of supersaturation with respect to CH of their mannequin methods on the time of sampling (SI = 1.20–1.90) exceeded that of the cementitious pore resolution after 15 min (SI = 0.55). Moreover, the absence of huge ACH particles within the vitrified pore resolution is totally according to the SAXS and PDF analyses carried out immediately on the native liquid pore resolution (see under), each of which verify the presence of solely sub-nanometer calcium sulfate species and thus validate the cryo-HRTEM findings.

SAXS and PDF examine of the answer

To keep away from any preparation artifacts, which could compromise the pure state of the cementitious pore resolution, we carried out a complete evaluation utilizing small-angle X-ray scattering (SAXS) and pair distribution operate (PDF) evaluation strategies. To make sure relevance to actual circumstances, SAXS and PDF evaluation have been performed immediately on the separated cementitious pore resolution in its native liquid state, enabling structural characterization with out drying artifacts. SAXS is a well-established technique in supplies science for characterizing particulate methods, reminiscent of colloidal suspensions⁶³. We employed SAXS to characterize the dimensions and morphology of main particles and agglomerated species current within the cementitious pore resolution. The SAXS profile with a two-level Beaucage mannequin⁶⁴ (see Fig. 6d) reveals the presence of almost spherical main particles exhibiting a gyration radius (R_g) of roughly 0.37 nm (equating to ~1 nm in diameter for a spherical entity) along with corresponding clusters with a gyration radius of roughly 7 nm. Making use of the Schutzsphere mannequin⁶⁵ for spherical particles produced a slender diameter distribution and a very good match for the scattering conduct of the first particles (see SI, Fig. S77), with a median diameter of 1.06 nm (see SI, Fig. S78). This SAXS-derived dimension gives a preparation-artifact-free quantitative measure of the native particle dimension, in direct distinction to the dimensions distributions obtained from dried TEM samples (see SI, Figs. S2–S4). The outcomes of the SAXS measurements thus confirmed that the big ACH spheres recognized by electron microscopy don’t precisely symbolize the native state of CH within the cementitious pore resolution. As an alternative, these findings counsel the existence of tiny prenucleation clusters within the pore resolution with diameters of roughly just one nm.

To characterize the native atomic construction of the amorphous section current within the cementitious pore resolution, we carried out differential PDF evaluation utilizing high-energy X-ray scattering knowledge collected on the European Synchrotron Radiation Facility (ESRF). An undersaturated CH resolution (0.01 M) served as a reference to isolate structural options particular to different phases. The ensuing differential PDF (see Fig. 6e) reveals distinct peaks at 1.50, 2.52, and three.80 Å, comparable to the S-O, Ca-O and Ca-Ca/S-S interatomic distances, that are attribute of calcium sulfate prenucleation clusters⁶⁶. These attribute distances and the fingerprint of the abstracted differential PDF intently resemble these reported for calcium sulfate prenucleation clusters within the examine by Stawski et al. on the formation pathway of gypsum (CaSO₄·2H₂O) from aqueous resolution. Utilizing molecular dynamics simulations, the authors derived the constructions of small calcium sulfate clusters that function precursors for crystalline gypsum. The sturdy settlement between our experimentally derived differential PDF and the MD-validated PDF signatures introduced by Stawski et al. means that the amorphous section detected within the cementitious pore resolution will be attributed to comparable calcium sulfate precursor clusters⁶⁶. Moreover, the absence of long-range order, indicated by the termination of PDF oscillations between 8 and 10 Å, signifies a coherent structural correlation size of lower than 1 nm, which is according to the amorphous, ultra-small domains detected by SAXS (see Fig. 6d) and cryo-HRTEM (see Fig. 6a–c).

Total, these outcomes present conclusive proof for the existence of amorphous calcium sulfate prenucleation clusters within the cementitious pore resolution after 15 min of hydration. Much like cryo-HRTEM, no CH precursors have been detected within the PDF evaluation (see SI, Fig. S79), regardless of the answer being supersaturated with respect to each calcium sulfate and CH (see SI, Desk S4). This strongly means that the ACH nanoparticles noticed in typical TEM come up throughout pattern drying and don’t replicate the true state of CH inside the cementitious pore resolution. To precisely elucidate this state and the pathways of CH nucleation and development in resolution, it’s crucial to conduct additional investigations of cementitious pore options using superior high-resolution in situ scattering strategies, together with atomistic simulation strategies, reminiscent of molecular dynamics (MD) simulations⁶², which, nevertheless, exceed the present scope of the current examine. It also needs to be famous that the structural characterization was carried out completely on cementitious pore resolution separated after 15 min of hydration, which represents the early dormant interval of cement hydration. Whether or not CH prenucleation clusters or ACH could kind at later levels of the induction interval can’t be excluded or confirmed based mostly on the current knowledge and represents an essential course for future investigations.

Precipitation of calcium hydroxide and gypsum from separated cementitious pore options

At the side of the electron-microscopic evaluation of the separated cementitious pore resolution and the ACH intermediate section fashioned throughout drying the pore resolution on a floor, we performed a complete sequence of macroscopic precipitation experiments utilizing the separated pore options. By figuring out the precipitating species after an outlined induction time and figuring out the consequences of assorted parameters, reminiscent of temperature, the timing of pore resolution separation, and pore resolution sulfate focus, we aimed to boost our understanding of CH precipitation in cement pastes. A separated cementitious pore resolution stays steady for a number of days when saved beneath an inert fuel ambiance at low temperatures. Beneath these circumstances, no precipitate kinds from the answer, and even after a number of days, amorphous spherical nanoparticles will be noticed utilizing typical TEM, in full analogy to the experiments described above. Nevertheless, in precipitation experiments performed at elevated temperatures (25–50 °C), CH will homogeneously crystallize from the pore resolution after an induction time, as demonstrated by thermogravimetric analysis-mass spectrometry (TGA-MS), powder X-ray diffraction (PXRD), and Fourier-transform infrared (FTIR) measurements (see SI, Sections S6–S8). The induction time, decided by means of conductivity measurements (see Fig. 7a and SI, Part S5), is temperature-dependent and reduces significantly with growing temperature (see SI, Desk S6 and Fig. S49). The onset of CH precipitation is accompanied by a big lower in conductivity, whereas the conductivity doesn’t fall in the course of the previous induction interval. Consequently, the cementitious pore resolution is taken into account metastable, with the formation of portlandite kinetically hindered beneath the circumstances investigated.

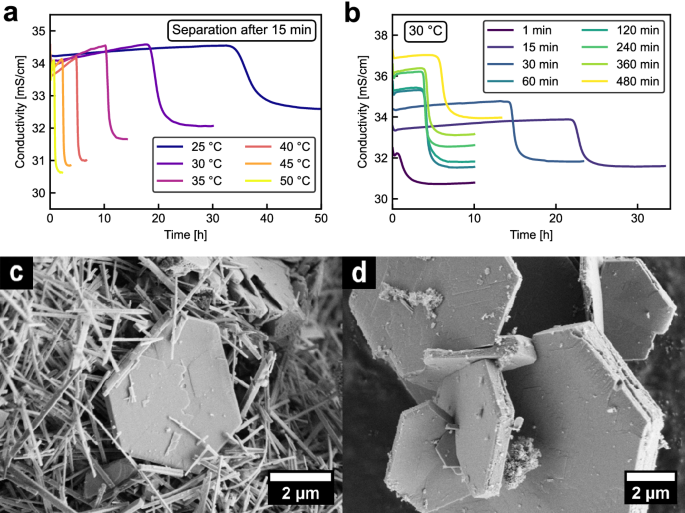

Fig. 7: Dependence of the induction time for CH precipitation from cementitious pore solution on the temperature and the separation timing of the pore solution. — **Fig. 7: Dependence of the induction time for CH precipitation from cementitious pore resolution on the temperature and the separation timing of the pore resolution.**

Notably, the induction instances for CH precipitation, measured at 30 °C, are additionally affected by the separation timing of the pore resolution (see Fig. 7b and SI, Desk S7 and Fig. S50). If the pore resolution was separated from the cement paste instantly after mixing, gypsum precipitated inside a couple of minutes (see Desk 1 and SI, Figs. S39, S53, S61, and S69), because the aqueous section continues to be supersaturated with respect to gypsum (SI, Desk S4). At later separation instances (15 min or 30 min), gypsum and CH co-crystallized from the pore resolution at 25 °C, with the quantity of gypsum reducing over time (see Desk 1, Fig. 7c and SI, Figs. S40, S54, S62, and S70). Conversely, if the pore resolution was separated later, reminiscent of after 1 h or at greater temperatures (30 °C or extra), solely CH, not gypsum, precipitated after a particular induction interval (see Desk 1, Fig. 7d and SI, Figs. S41, S55, S63, and S71). For pore options separated after 1 or 2 h, in the course of the dormant interval of cement hydration (see SI, Fig. S76), the induction time for CH nucleation was greater than halved on the identical temperature in comparison with separation after 15 min (see SI, Desk S7 and Fig. S50). The induction time additional decreased barely when the pore resolution was separated after 4 or 6 h, in the course of the acceleration interval of cement hydration (see SI, Fig. S76). It is very important observe that portlandite will need to have already fashioned inside the cement paste by this stage, as its preliminary formation sometimes coincides with the beginning of the acceleration interval¹². Regardless of this, the pore resolution stays supersaturated with respect to CH (see SI, Desk S4)²⁸, permitting CH to precipitate from the answer after a particular induction interval. The induction time then elevated once more if the pore resolution was separated after 8 h. Past this level, additional separation of the pore resolution was not possible, because the cement paste had solidified to such an extent that it might not be stirred.

Desk 1 Proportions of portlandite and gypsum in remoted precipitates from precipitation experiments performed on cementitious pore options at varied temperatures (T), which have been separated at completely different instances after the beginning of hydration (t_sep) and had various sulfate concentrations ((c({{{{rm{SO}}}}}_{4}^{2-})))

The induction time of CH precipitation from separated pore resolution, due to this fact, relies upon not solely on the temperature but additionally on the chemical composition of the pore resolution (see SI, Desk S4). Because the soluble sulfate sources grow to be depleted because the hydration of OPC progresses (see SI, Fig. S76), the sulfate focus within the pore resolution declines sharply within the first hour of cement hydration (see SI, Fig. S47). Particularly, the preliminary speedy lower in each sulfate and Ca²⁺ concentrations in the course of the first 15 min is primarily attributable to ettringite formation⁵¹. This will point out that CH precipitation is inhibited by sulfate ions in cementitious pore options, which grow to be more and more diminished in the course of the dormant interval of cement hydration, thereby permitting CH to crystallize. Gypsum and alumina have a non-negligible kinetic affect on the nucleation of CH in cement paste, whereas the affect of alkali ions is minimal⁵⁶. Additionally it is believable that the detected prenucleation clusters of gypsum within the pore resolution (see Fig. 6) could work together with portlandite and subsequently function heterogeneous nucleation websites. In cement paste, the native atmosphere round dissolving gypsum particles additionally promotes CH nucleation⁵⁶. Apparently, the induction time for CH precipitation from a pure C₃S pore resolution, which was separated and examined beneath the identical circumstances, is discovered to be a number of instances shorter than that from a cementitious pore resolution: 8 h vs. 37 h at 25 °C (see SI, Desk S8 and Fig. S51). Nevertheless, if a small quantity of gypsum is combined with C₃S earlier than hydration, the induction time will increase to ranges just like these noticed in cementitious pore options (see SI, Desk S8 and Fig. S51). This means that sulfate ions play a big position in inhibiting CH precipitation.

To additional examine the suspected inhibitory impact of sulfate ions, we performed a further sequence of precipitation experiments at 45 °C, a temperature at which gypsum is extra soluble than at room temperature, thereby stopping gypsum precipitation. On this experiment sequence, we manipulated the sulfate focus within the separated pore options by including alkali sulfates (Na₂SO₄ and Ok₂SO₄ in a 1:7 molar ratio) to extend sulfate ranges and by precipitating BaSO₄ with BaCl₂·2H₂O to lower sulfate ranges. This technique is nearly completely selective for the removing of ({{{{rm{SO}}}}}_{4}^{2-}) and allowed us to regulate the sulfate focus of the separated pore resolution from 1000 to 3500 mg/L (see SI, Desk S5 and Fig. S48). It was not attainable to extend the sulfate focus indefinitely, as doing so would trigger gypsum to precipitate as a substitute of portlandite. Even with a average enhance in sulfate focus (+30 mmol/L), gypsum started to co-precipitate (see Desk 1 and SI, Figs. S43, S58, S66, and S74), whereas at decrease sulfate concentrations, solely portlandite precipitated (see Desk 1 and SI, Figs. S44, S59, S67, and S75). The conductivity measurements and induction instances for CH precipitation are introduced in Fig. 8 (and SI, Desk S9). Because of the presence of extra alkali or chloride ions in resolution, the measured conductivity in all experiments was greater than within the reference measurement (82 mmol/L). The induction time for CH precipitation from a cementitious pore resolution exhibits an virtually completely exponential relationship with sulfate focus, clearly indicating that current sulfate ions inhibit CH nucleation in these options. Nevertheless, since an induction interval of 8 h for CH precipitation was additionally noticed in a pure C₃S pore resolution (see SI, Desk S8 and Fig. S51)—the place no sulfate ions are current—sulfate inhibition alone can not totally account for the kinetic barrier to CH nucleation, suggesting that extra ionic species contribute to the noticed metastability. The “silicate-poisoning concept” means that the crystallization of portlandite can also be inhibited because of the poisoning of small crystallization nuclei by silicate species current within the pore resolution^18,19,20.

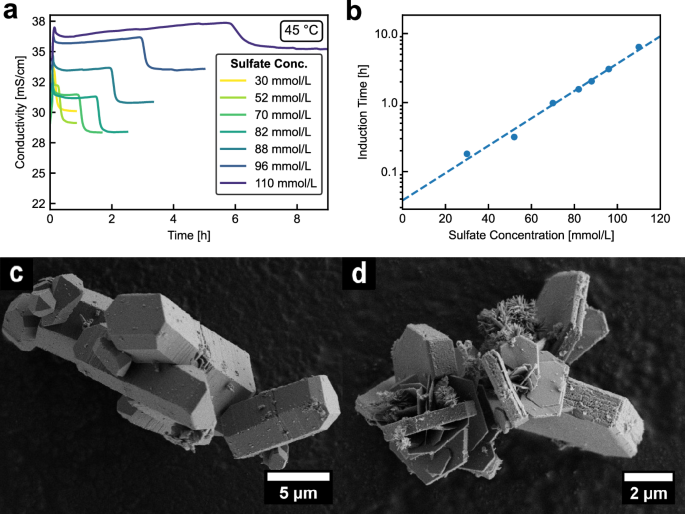

Fig. 8: Dependence of the induction time for CH precipitation from cementitious pore solution on the sulfate concentration of the solution. — **Fig. 8: Dependence of the induction time for CH precipitation from cementitious pore resolution on the sulfate focus of the answer.**

We remoted the precipitates from the nucleation experiments and characterised them utilizing TGA-MS, PXRD, FTIR (see SI, Sections S6–S8), and SEM (see SI, Part S3.3). Crystalline CH fashioned as a precipitate in all experiments when the pore resolution was separated after 15 min or later and stirred beneath a nitrogen ambiance (see Desk 1, Fig. 7c and SI, Figs. S42, S56, S64, and S72). Nevertheless, when the pore resolution was separated immediately 1 min after water addition, solely gypsum was discovered, with no CH current (see Desk 1 and SI, Figs. S39, S53, S61, and S69). In some instances, the presence of amorphous calcium carbonate (ACC) was detected, which is probably going a results of inadvertent carbonation of the cementitious pore resolution by atmospheric CO₂ because of contact with the air⁶⁷. The SEM photographs (see Fig. 7d and SI, Fig. S41) of the remoted CH precipitates revealed flat hexagonal plates with sheet-like morphology. The noticed crystals had edge lengths starting from 1 to 10 μm and a median thickness of 0.5 μm. The diameter of totally developed portlandite crystals grown beneath managed experimental circumstances sometimes ranges from 2 to 10 μm, whereas their size varies from 10 to 50 μm⁴³. The scale, form, and behavior of the obtained CH crystals are thus just like these present in cement pastes⁶⁸, however differ significantly from these crystallizing in pure supersaturated CH options ready by mixing CaCl₂ with NaOH^42,69,70. The crystal morphology of CH is influenced by the ions current within the pore resolution. Sulfate anions, for instance, sometimes promote the formation of CH crystals with a c/a crystal axis ratio of lower than 0.5⁷¹. This transformation of the crystal behavior from prismatic to tabular, induced by components reminiscent of sulfates, is clearly illustrated by evaluating SEM photographs of the precipitates on the highest and lowest sulfate concentrations (see Fig. 8 and SI, Figs. S43 and S44). Moreover, SEM photographs of precipitates from the C₃S pore options additional reveal this transformation. When gypsum is combined with C₃S earlier than hydration, portlandite precipitates as flat hexagonal plates (see SI, Fig. S46) reasonably than elongated prismatic columns or very skinny plate-like crystals (see SI, Fig. S45) from the separated pore resolution.

In nucleation experiments performed in air reasonably than an inert fuel, a colorless precipitate fashioned rapidly (inside minutes) on the liquid-gas interface, recognized as calcite by means of TGA-MS, PXRD, and FTIR analyses (see SI, Figs. S57, S65, and S73). Electron micrographs of separated pore resolution uncovered to air for 1 day revealed stacks of crystalline particles with the attribute form of calcite (see SI, Fig. S27). The initially spherical ACH particles reworked into crystalline calcium carbonate. The ACH particles are solely metastable beneath an inert fuel ambiance and exhibit excessive reactivity in direction of atmospheric CO₂, as demonstrated by EELS measurements (see Fig. 1 and SI, Fig. S28). Primarily based on our findings, significantly the EELS measurements, we hypothesize that this transformation happens by way of an intermediate ACC stage. Guzmán García Lascurain et al. additionally detected ACC of their ex situ evaluation of microcellulose-stabilized ACH, possible because of unintended carbonation of the ACH throughout pattern preparation in air⁴⁵.

Source link
