Comparing the structure and photoluminescence properties of Bi-doped lead-free double perovskites prepared by solution-based synthesis and green mechanochemistry

Excessive decision transmission electron microscopy (HRTEM)

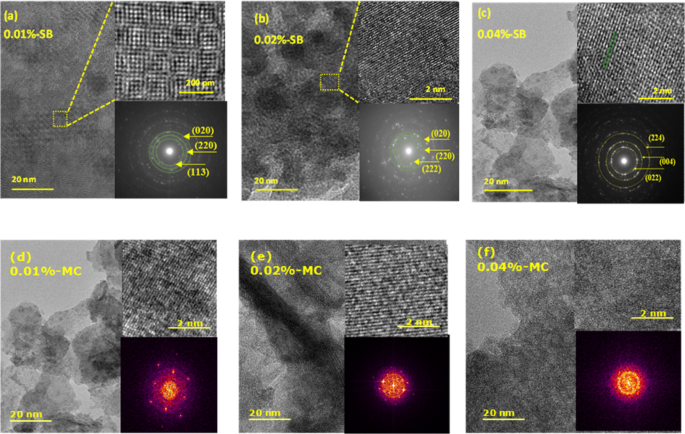

Determine 2(a)-(f) current the HRTEM photographs of the samples. For CANBIC (SB)-0.01 at% pattern (Fig. 2(a)-(c)), the lattice fringes (spacing of 0.319 nm) correspond to the (113) crystal aircraft, which is verified within the SAED photographs (inset). At larger magnification, the atoms are organized in systematic order. Upon additional introduction of 0.02 at% Bi ions, an growth within the lattice fringes (0.321 nm) akin to the aircraft (113) was noticed. The noticed variation in fringe spacing aligns with the shift in diffraction peaks, a phenomenon attributed to variations in Bi content material that considerably affect and broaden the structural symmetry. The high-resolution TEM picture reveals the clear lattice fringe of 0.37 nm, which corresponds to the crystal aircraft of the cubic Cs₂AgInCl₆, indicating the excessive crystallinity of the NCs¹⁶. HRTEM photographs (Fig. 2(d) – (f)) of CANBIC (MC) – 0.01 at%, and the corresponding Quick Fourier Remodel (FFT) sample point out that the cubic formed NCs possess lattice spacing round 0.36 nm akin to the (220) aircraft of Cs₂AgInCl₆, which additional will increase for CANBIC (MC)− 0.02 at% resulting from discrete lattice growth. In CANBIC (MC)−0.04 at%, dysfunction has been noticed as mirrored by the halo rings within the FFT sample.

Crystal construction and microstructure

CANBIC DP samples synthesized by way of SB and MC resulted in white powders. SEM evaluation of the CANBIC-0.01 at% pattern, ready by way of SB, confirmed a polygonal crystal construction. Incorporation of Bi³⁺ in CANBIC (SB) past 0.01 at% led to the expansion of irregularly formed particles as offered in Fig. 3(a)–(c). The regularity within the octahedral form for CANBIC-0.01% is related to symmetry and crystallinity¹⁸. That is attributed to the presence of decrease floor power and fewer defects. In distinction, the MC synthesis of CANBIC resulted in aggregated powder particles, making it tough to find out the crystal morphology. This smooth agglomeration is because of electrostatic attraction or van der Waals forces (confer with Fig. 3(d)–(f)).

To evaluate focus variations of Bi content material throughout the samples, we employed X-ray Fluorescence (XRF) (Fig. S1(a) and (b)). The spectra revealed a rise within the relative depth of Bi L_α1, L_β1, and L_γ1 indicators because the focus of Bi in CANBIC (SB) and (MC)-0.01 at%, 0.02 at%, and 0.04 at% perovskites elevated. Semi-quantitative evaluation of Bi L_α1 and L_β1 peak depth confirms a progressive enhance in Bi content material from 0.01 to 0.04 at% in each SB and MC samples. For SB samples, the depth increment between 0.02 and 0.04 at% is smaller than 0.01 and 0.02 at% which we attribute to detection sensitivity limits of XRF for hint Bi quantities in a Cl-rich matrix. The structural incorporation of Bi unambiguously confirmed by the systematic XRD peak shifts towards decrease angles (Fig. 4(b) and 5(c)). The lattice parameter growth is mentioned above.

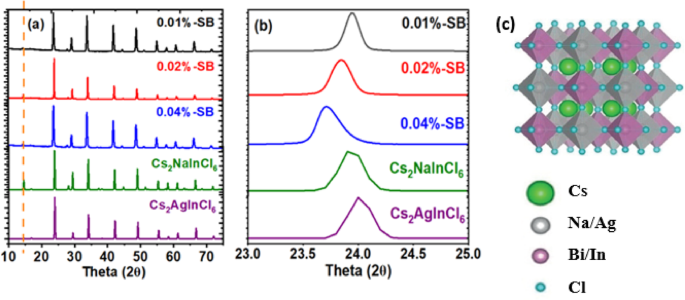

The X-ray diffraction information for the CANBIC (SB) samples with 0.01, 0.02, and 0.04 at% displayed a sample indicative of cubic perovskite construction, conforming to the Fm-3 m area group and correlated with the reference diffraction sample for Cs₂AgInCl₆ (ICSD 244519) (proven in Fig. 4(a)). On this crystal, the [AgCl₆]⁵⁻ and [InCl₆]³⁻ octahedra type a 3D framework¹⁹. The crystal construction remained per the introduction of 0.02 at% and 0.04 at% Bi³⁺, as evidenced by the unchanged XRD patterns, offered in Fig.4(a), which signifies that Bi³⁺ changed In³⁺ and Na⁺ changed Ag⁺ with out altering the lattice sort. Upon substitution, the Bi³⁺ ions change In³⁺, forming [BiCl₆]³⁻ octahedra, and Na⁺ replaces Ag⁺, forming [NaCl₆]⁵⁻ octahedra. The bigger ionic radii of Bi³⁺ in comparison with In³⁺ and Na⁺ in comparison with Ag⁺ result in an growth of the crystal lattice, inflicting a shift of the XRD peaks in the direction of decrease angles (see Fig. 4(b))²⁰. The noticed lattice growth is primarily as a result of substitution of In³⁺ (ionic radius: 80 pm) by the considerably bigger Bi³⁺ (103 pm). In distinction, Na⁺ (102 pm) is marginally smaller than Ag⁺ (115 pm), so Na⁺/Ag⁺ substitution doesn’t contribute geometrically to lattice growth; fairly, it modifies the native digital construction by disrupting Ag 4d-Cl 3p covalent hybridisation, not directly affecting lattice parameters²⁰.The crystallite measurement was calculated utilizing the Scherrer formulation (given within the supplementary data) and essentially the most intense peak within the XRD sample (Fig. 4(b)), and the outcomes present a lower (56.54 to 35.00 nm) with rising.

focus of Bi³⁺, as given in desk S.1. In samples obtained by way of MC, the method ends in particle measurement discount and the continuous publicity of contemporary reactive surfaces, which promotes the solid-state response. Though the synthesis was performed at room temperature, the native temperature throughout milling seemingly will increase, favouring the reactants in overcoming the activation power barrier for the chemical reactions²¹. Consequently, the crystallinity of the samples elevated repeatedly with milling time. This impact was carefully examined by performing a sequence of experiments various the milling time from 2 to 60 min and following the corresponding modifications in crystallinity by way of XRD (Fig. 5(a) and (b)). Beneath 20 min, the samples comprise a combination of various phases of cubic AgCl (ICSD 56538), Cs₂AgInCl₆ (a slight signature of its presence is noticed in Fig. 5(a)). The crystalline construction started to develop after 47 min, reaching full part formation inside 62 min. The diffraction peaks of all of the CANBICs are well-matched with the reported construction (ICSD quantity 244519) of

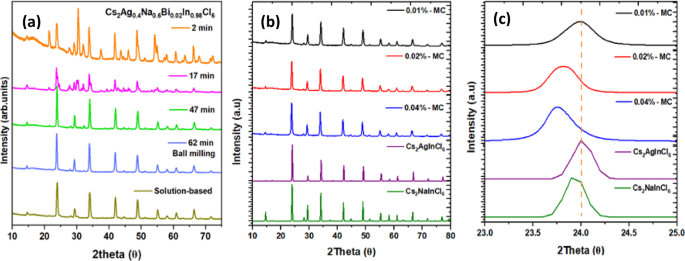

Cs₂AgInCl₆. Nonetheless, for the MC methodology, the diffraction area measurement remained constant, unbiased of Bi³⁺ content material, with comparable particle sizes noticed for CANBIC samples with 0.01%, 0.02%, and 0.04 at% of Bi doping (given in Fig. 5(c), indicating the importance of milling time through the part formation). Moreover, a minor diffraction peak at 13.7° was evident for all samples and was attributed to the alternate association of Na⁺/Ag⁺ cations throughout the DP construction, suggesting that Na⁺ partially occupies the atomic websites of Ag⁺ within the Cs₂AgInCl₆ lattice. It’s usually anticipated that Ag⁺ and Na⁺ will substitute one another, provided that Cs₂AgInCl₆ and Cs₂NaInCl₆ exhibit comparable crystal constructions and a minor lattice mismatch of 0.6%²². Conversely, the absence of residual peaks means that Na⁺ and Bi³⁺ doping successfully suppresses the formation of impurity phases. The ionic radii distinction of the cations may end up in symmetry breaking within the [InCl₆]³⁻ and [AgCl₆]⁵⁻ octahedra, producing localized pressure throughout the lattice²³.

Raman spectroscopy

Raman spectra of CANBIC-SB and CANBIC-MC samples exhibit phonon modes at roughly 111, 140, 172, 239, and 296 ± 0.5 cm^− 1 (Fig. S2). These are assigned as follows: the mode at 111 cm⁻¹ corresponds to a metal-halide lattice translation mode; these at 140 ± 0.5 and 172 ± 0.5 cm⁻¹are attributed to exterior lattice modes involving Cs⁺ and inner vibrations of [AgCl₆]⁵⁻ octahedra, respectively; the band at 239 ± 0.5 cm⁻¹ is the symmetric stretching mode of [InCl₆]³⁻/[BiCl₆]³⁻ octahedra, delicate to native distortions upon Bi³⁺ incorporation; and the characteristic at 296 ± 0.5 cm⁻¹ corresponds to higher-frequency metal-chloride stretching. The progressive depth enhance of the 111 ± 0.5 cm^− 1 mode with Bi³⁺ content material is per both the activation of a Bi-related native mode or enhanced electron-phonon coupling arising from the better polarizability of Bi³⁺ relative to In³⁺^24,25. Critically, the height positions and relative intensities are indistinguishable between SB and MC samples, confirming that each routes produce structurally equal double perovskite lattices on the native scale, and that the noticed variations in optical efficiency come up from morphological and defect-related variations fairly than bulk structural distinctions.

Thermogravimetric evaluation (TGA)

TGA of the synthesized CANBIC (SB) and (MC)-0.01, 0.02 and 0.04 at%, revealed no vital decomposition as much as roughly 579 ± 1 °C and 586 ± 1 °C in CANBIC (SB) and CANBIC (MC), respectively (Fig. S3(a) and (b)). TGA reveals two well-defined mass-loss occasions, occurring at ~ 580 ± 1 °C and ~ 756 ± 1 °C, and ~ 586 ± 1 °C and ~ 811 ± 1 °C for CANBIC (SB) and CANBIC (MC), respectively. The decrease temperature mass loss (~ 580–586 ± 1 °C) is assigned to the preliminary breakdown of the double-perovskite framework with the discharge of risky halogen species and partial formation of metal-chloride phases. The high-temperature mass loss (~ 756–811 ± 1 °C) corresponds to additional decomposition and conversion to extra secure inorganic residues as metallic chlorides/oxides, indicating full collapse of the perovskite construction^26,1. The shift of the second decomposition step in MC samples (~ 55 °C larger) suggests a barely improved thermal stability, reflecting variations in defect focus, particle measurement or interparticle bonding launched by the synthesis route.

Thermal remedy of CANBICs

Warmth remedy at 400 °C induced a part separation in each CANBICs, as evidenced by X-ray diffraction (Fig. S4(a)–(f)). The preliminary single-phase sample advanced right into a superposition of two distinct patterns akin to Cs₂AgInCl₆ and Cs₂NaInCl₆, notably noticeable beneath 20 levels. At 300 °C and 400 °C, most XRD reflection peaks broadened and decreased in depth, indicating a discount in crystallite measurement and/or a rise in micro-strain defects resulting from thermal stress. The numerous change within the decrease angle area at 400 °C suggests a lack of the unique long-range ordering and/or the formation of a brand new, segregated part or structural distortion²⁶. Apparently, heating induces cation redistribution, part separation, and partial lattice collapse, leading to elevated structural dysfunction and the formation of overlapping crystalline domains. Consequently, the perovskite construction stays secure solely as much as roughly 300 °C, past which its structural integrity deteriorates.

Optical properties – absorption

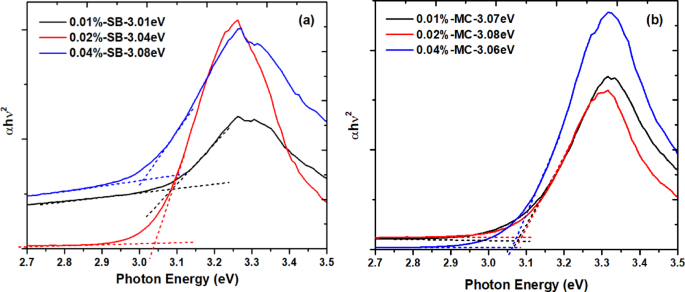

The optical bandgap was evaluated from the Tauc plots, utilizing the Kubelka-Munk²⁷(formulation given in Supplementary Data) αhν² vs. hν (Fig. 6(a) and (b)). We adopted the protocol of Makula et al.²⁸ to find out the bandgap, all CANBIC samples confirmed a constant direct bandgap of ~ 3.0-3.1 ± (0.04) eV, in comparison with ~ 3.3 eV reported for undoped Cs₂AgInCl₆. The bandgap narrowing upon Bi³⁺ and Na⁺ co-incorporation arises via two distinct mechanisms: (1) Bi³⁺ introduces occupied 6s² lone-pair states that hybridize with Cl-3p states, thereby shifting the VBM to larger power and dispersing the band-edge via spin-orbit coupling; (2) Na⁺ alters the native crystal construction and modifies orbital overlap on the B-site, not directly impacting the band-edge positions²⁹. A sub-gap absorption tail extending beneath 3.0 ± (0.04) eV is current in all samples and is attributed to absorption by localized defect or impurity states. The broadening of the absorption characteristic and the presence of a number of peaks within the (3.3–4.7) ± (0.04) eV vary are per contribution from excitonic transitions and interband absorption.

The absorption spectra of all samples (Fig. S.5(a)–(f)) exhibit three outstanding options at roughly 3.3, 3.9, and 4.6 ± 0.04 eV. The high-energy band (~ 4.6 eV) is assigned to interband transitions, primarily from Cl 3p to In 5p states of the Cs₂AgInCl₆ host. The lower-energy options at ~ 3.3 and ~ 3.9 eV is attributed to excitonic transitions arising from valence-band splitting induced by spin–orbit coupling and Jahn–Teller distortions coupled with Bi 6p–Cl 3p antibonding orbitals, per the Elliott mannequin for near-band-edge absorption in semiconductors³⁰. The exciton options round (3.34–3.60) ± 0.04 eV broaden and intensifies with rising Bi³⁺ content material (see Fig. S6)), indicating that Bi incorporation enhances excitonic absorption whereas the interband absorption stays roughly fixed.

Photoluminescence emission and excitation

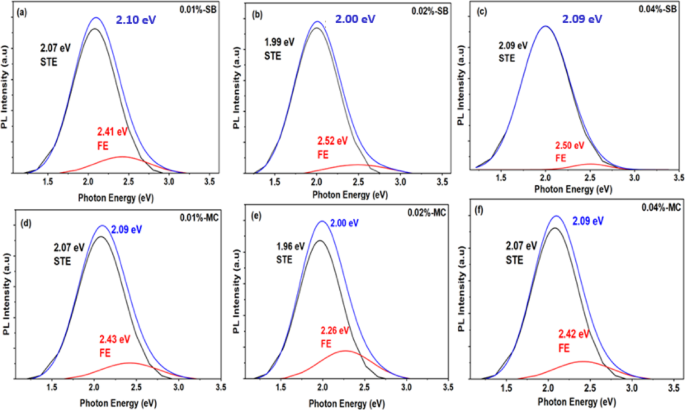

All CANBIC samples exhibit broad, uneven PL emission underneath 345 nm (3.59 eV) excitation, with emission peaks centered within the vary (2.1–2.3) ± 0.005 eV (Fig. 7(a)–(f)).

The spectra are Jacobian-corrected previous to evaluation (particulars within the S.I.)^31,32. The broad uneven (ranging between 1.37 and three.1 eV) peak is attribute of STE emission, arising from robust electron-phonon coupling and vital lattice leisure within the excited state. Deconvolution of PL emission spectra was carried out utilizing a double Gaussian perform, revealing two emission bands: a lower-energy element attributed to STEs (SB: 1.99–2.09 ± 0.005 eV; MC: 1.96–2.07 ± 0.005 eV and a higher-energy element attributed to free exciton (FE) recombination (SB: 2.41–2.52 eV; MC: 2.26–2.43 eV). The big Stokes shift between absorption (~ 3.3 ± 0.005 eV) and STE emission (~ 2.0 eV) is per substantial lattice reorganization within the excited state, attribute of Jahn-Teller distortion throughout the [AgCl₆]⁵⁻ octahedra³³. The delicate variations within the native structural and digital setting, induced by the synthesis route, are per the broader FE emission space noticed in MC samples. The bigger FE contribution noticed in MC samples, coupled with their decrease PLQY and shorter common lifetimes (see part Photoluminescence Quantum Yield and Decay Dynamics), signifies a better inhabitants of delocalized excitons that preferentially endure non-radiative recombination fairly than self-trapping. That is per the elevated density of structural defects and micro-strain launched by high-energy ball milling^34,35 which promotes grain refinement, powder activation, and enhanced dopant homogenization, yielding the constant EA area centered at ~ 3.54 ± 0.005 eV throughout all Bi concentrations and rising non-radiative pathways relative to solution-based synthesis²².

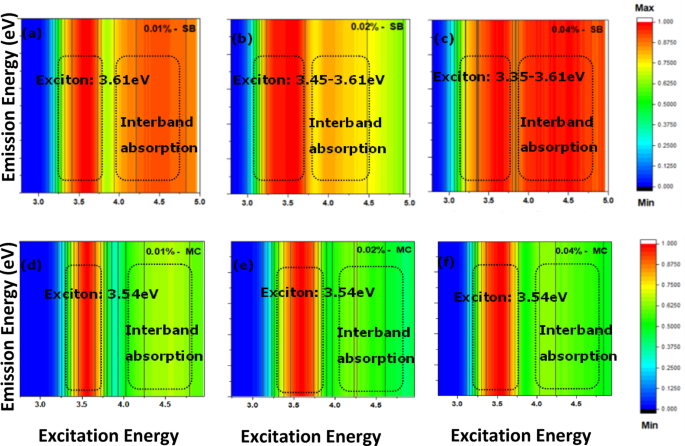

2-Dimensional PLE-emission maps have been obtained for all CANBIC samples (Fig. 8 (a)–(f)) illustrating a complete view of excitation pathways contributing to emission spectra. With excitation spectra generated at an emission of two.17 ± 0.005 eV, these 2D maps clearly delineate the 2 excitation areas: a lower-energy area akin to ‘exciton absorption’ and a higher-energy area akin to ‘interband absorption’, additionally illustrated in Fig. S6.

For SB samples, the EA characteristic seems at ~ 3.61 eV for 0.01% Bi, broadening and red-shifting progressively to (3.45–3.61) ± 0.005 eV for 0.02% Bi and (3.35–3.61) ± 0.005 eV for 0.04% Bi, indicating that rising Bi³⁺ content material modifies the excitonic binding power and/or native digital construction round BiCl₆ octahedra, per noticed red-shifts of sub-bandgap absorption bands upon larger Bi doping in CANBICs^29,20.

For MC samples, the EA area stays constantly centered at ~ 3.54 ± 0.005 eV throughout all Bi concentrations²², suggesting that the mechanochemical synthesis yields a extra uniform native setting for exciton formation via enhanced dopant homogenization by way of high-energy ball milling²². For each synthesis strategies, interband absorption begins at ~ 3.8 eV and extends to larger energies, akin to direct VBM and CBM transitions and the Cl 3p to In 5p transitions mentioned above.

Photoluminescence quantum yield and decay dynamics

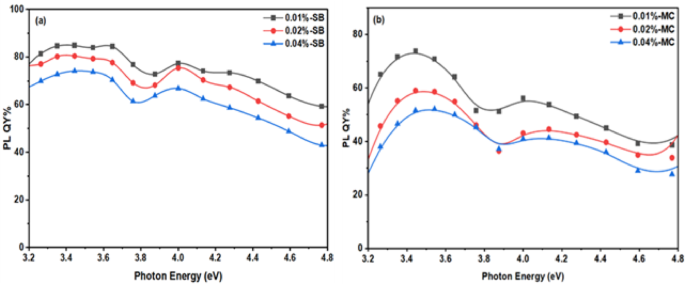

Experimental absolute PLQY values of the 2 units of CANBICs, obtained as a perform of excitation power are offered in Fig. 9 (a) and (b). The undoped Cs₂AgInCl₆ reference displays a really low PLQY of ~ 1.7%, as a result of beforehand mentioned parity-forbidden nature of the band-edge transition³⁶. Upon Bi³⁺ doping, the PLQY will increase and reaches a most of 84% at y = 0.01 for SB samples (Desk 1). With an extra enhance in Bi³⁺ content material (y = 0.02, 0.04 at%), the PLQY decreases for each SB and MC samples, resulting from focus quenching – the place the proximity of Bi³⁺ facilities facilitates cross-relaxation and power migration to non-radiative quenching websites. This lowered PLQY with rising Bi content material is per earlier research on comparable CANBIC methods. Stroyuk et al. ready a broad vary of Cs₂Ag_xNa_1−xBi_yIn_1−yCl₆ compositions and reported that PLQY rises with rising Bi focus as much as most of 98% at y = 0.01–0.02 at%, after which decreases with larger Bi concentrations (y < 0.01 at%)^19,20. For Bi concentrations beneath y = 0.01 at%, the PLQY drops considerably, beneath 40% at y = 0.005 at%, resulting from an inadequate density of Bi³⁺ dopant centres to maintain environment friendly STE-mediated broadband emission throughout the host Cs₂AgInCl₆ lattice. An identical development was noticed by Stroyuk et al., the place compositions with y < 0.01 at% exhibited markedly lowered radiative recombination charges. These findings from the identical CANBIC household recommend that y = 0.01 at% represents a decrease threshold for environment friendly luminescence, beneath which the dopant density is just too small to activate the STE emission mechanism successfully. Our preliminary alternative of y = 0.01 at% because the lowest doping degree was impressed by and per this established compositional boundary within the literature^11,19,20. The relative commonplace deviation for PLQY measurements within the vary of the noticed PLQY values is 2%; uncertainties of PLQY measurements, together with instrument calibration are roughly 5%¹⁶.

SB samples constantly exhibit larger PLQY than MC samples at equal Bi³⁺ content material (Desk 1). CANBIC (SB) − 0.01, 0.02, and 0.04 at% samples constantly exhibit larger PLQY values, starting from 84% to 76%, because the Bi³⁺ ion content material will increase. Conversely, the CANBIC (MC)-0.01, 0.02, and 0.04% samples current decrease PLQY values starting from 77 to 65%. These outcomes recommend that the MC syntheses introduce non-radiative pathways, most certainly resulting from enhanced defects, strains, heterogeneous dopant distribution and bigger floor areas related to smaller crystallites proven in XRD and SEM photographs. SB synthesis permits superior morphological management afforded by, leading to extra uniform dopant distribution, decrease floor defect density (per the extra common crystallite morphology noticed by SEM), and lowered grain boundary trapping^21,37. The development in PLQY with Bi³⁺ content material additionally confirms the development in excited-state lifetime.

Desk 1 Evaluated values of common lifetime with commonplace deviation, PLQY, radiative and non-radiative charges of CANBIC synthesized by solution-based (SB) and Mechanochemistry (MC).

This evaluation offers perception into recombination dynamics and the affect of synthesis on the photophysical behaviour of CANBIC (SB) and (MC) perovskites.

The calculated common lifetime for the CANBIC samples (SB and MC) from the time-resolved measurements (particulars in SI), and their PLQY values are given in Desk 1.

A key commentary throughout each plots proven in Fig. S8. (a) and (b) is the final development of a reducing luminescence lifetime with rising Bi focus. This luminescence quenching is ascribed to a rise within the non-radiative power switch or intermolecular interactions that dissipate power. Evaluating the 2 syntheses, SB displays barely longer lifetimes than MC at every focus. As an example, at 0.01 at%, SB reveals a lifetime of 32.7 ± 0.25 µs (SB) and 30.5 ± 0.30 µs (MC). The explanations for the improved lifetime of SB embody lowered structural imperfections that would act as power traps³⁶.

Impact of tempering on photoluminescence

The affect of tempering, i.e., thermal remedy, on PL emission was investigated for all CANBIC-SB and CANBIC-MC samples over the vary of RT–400 ± 1 °C (Fig. S7(a) and (b)). A non-monotonic PL depth development is noticed: for many samples, notably at decrease Bi³⁺ concentrations, PL depth initially will increase upon tempering at 100–200 ± 1 °C. This thermally activated enhancement is attributed to defect therapeutic — particularly, recrystallization and elimination of shallow entice states (e.g., halide vacancies) that act as non-radiative recombination centres^37,29. For MC samples, the preliminary PL enhance additionally seemingly displays partial aid of mechanical pressure launched throughout milling, bettering grain boundary connectivity and decreasing non-radiative pathways. Past 200 ± 1 °C, PL depth decreases monotonically and almost vanishes at 400 ± 1 °C, notably for MC samples. That is per the onset of halide volatilization and cation migration at elevated temperatures, which generate non-radiative recombination centres³⁸. The concurrent XRD proof for part separation at s400 ± 1 °C confirms that the lack of PL arises from structural degradation fairly than easy thermal quenching. A scientific purple shift of the PL band with rising tempering temperature is noticed for all samples, attributed to lattice thermal growth and enhanced electron-phonon coupling, which deepen the STE potential effectively and scale back the emitted photon power³⁸.
