Activated biochar derived from agricultural and aquatic waste biomass supported on stainless steel mesh for sustainable hydrogen evolution reaction in neutral media

Fabrication course of and characterization

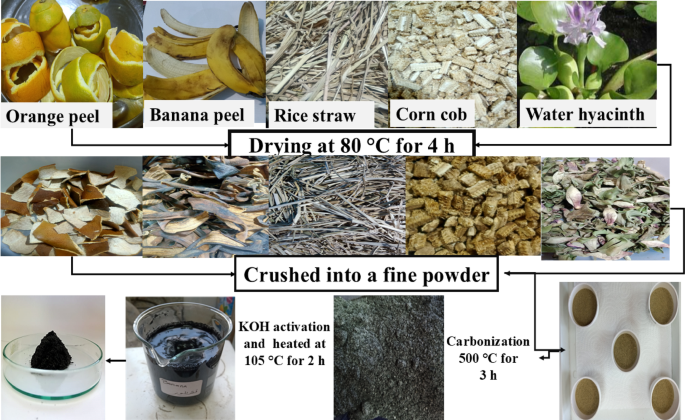

This work introduced an efficient and novel strategy for carbonizing and potassium hydroxide (KOH)–activating quite a lot of biomass sources to supply high-quality activated biochar. The nominated biomass precursors, orange peel (OP), banana peel (BP), rice straw (RS), corn cob (CC), and water hyacinth (WH), represented plentiful, cheap agricultural and aquatic wastes with robust potential for valorization. The experimental portion described the whole technique of synthesizing activated biochar (AB) from these assets, which was schematically proven in Fig. 1. It consisted of a collection of meticulously regulated procedures supposed to optimize the ultimate AB’s efficiency and structural high quality. Every kind of biomass was fastidiously cleaned earlier than processing to take away potential contaminants that might compromise the purity of the ultimate materials or hinder efficient carbonization. The cleansed biomass was finely powdered to enhance homogeneity and floor space. To realize constant thermal decomposition and keep away from structural flaws throughout carbonization, the powdered biomass was subsequently dried to take away moisture. The preparation findings demonstrated the good potential for producing helpful carbon supplies derived from agricultural and aquatic wastes in a method that’s each economically possible and environmentally sustainable²⁴.

Throughout carbonization at 500 °C, the natural parts have been decomposed and reorganized right into a carbon-rich biochar. Subsequently, the chemical activation course of utilizing KOH was carried out, which was a vital step for producing the excessive porosity and huge particular floor space attribute of high-performance activated carbon supplies. Thus, the adsorptive functionality and the accessibility of surface-active websites have been considerably enhanced. The obtained activated biochar yield (Y%) from every biomass precursor was calculated to guage the fabric effectivity and assess scalability. The carbonization yields for OP, BP, RS, CC, and WH have been 5.35, 20.7, 13.21, 3, and 14.8%, respectively, as proven in Desk 1. The structural, morphological, and crystallographic traits of the activated biochar samples have been completely characterised after carbonization and activation. Porosity, structural integrity, elemental distribution, and crystallinity have been evaluated utilizing refined analytical strategies. The microstructural traits of every biomass-derived activated biochar and its applicability for electrochemical and catalytic functions have been crucially revealed by these analyses.

Desk 1 Yield share of extracted biochar from Agricultural and Aquatic biowastes after carbonization.

Bodily characterization

FE-SEM coupled with EDX

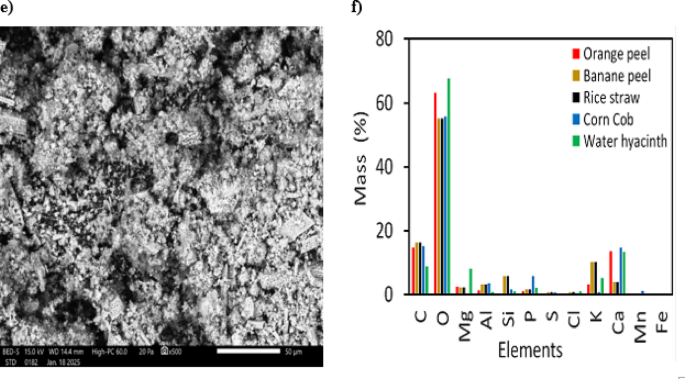

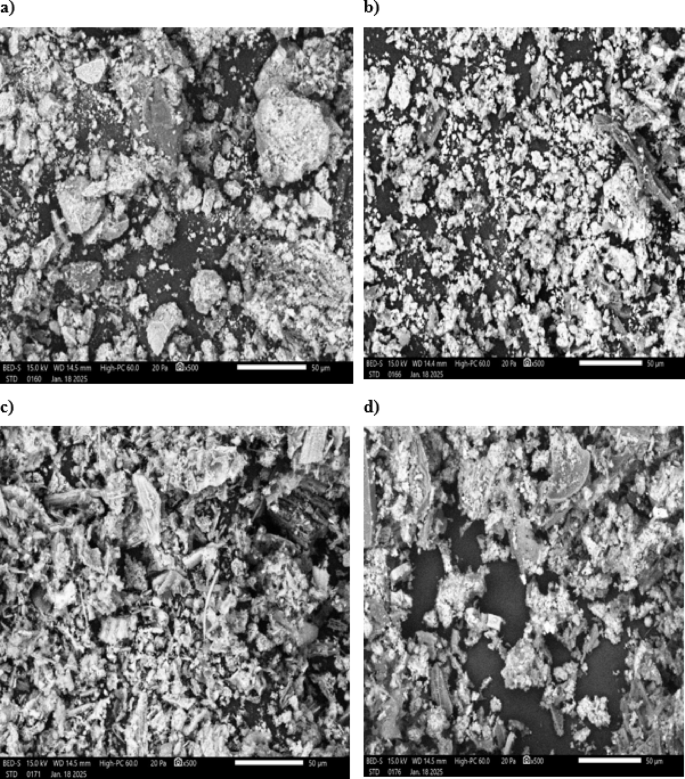

The microstructural options of the OP, BP, RS, CC, and WH activated biochar samples obtained from FE-SEM imaging at completely different magnifications are proven in Fig. 2(a-f) and Determine S1, and the corresponding EDX spectra and atomic weight percentages are given in Determine S2 and Desk S1, respectively. The morphology of all 5 samples was usually related, with fractures scattered at random and tough floor textures that recommended structural variability. The samples exhibited uneven, sheet-like domains and tiny aggregated lumps regardless of their strong bulk. Based on EDX evaluation, oxygen predominated throughout all synthesized activated biochars, according to the presence of silicates, metallic oxides, or floor purposeful teams. Additional, nitrogen, phosphorus, potassium, chlorine, calcium, aluminum, silicon, sulfur, magnesium, and sodium micronutrients have been present in hint quantities. Determine 2f summarizes the corresponding mass share distribution of those components, demonstrating the compositional variety of the activated biochar generated from biomass. FESEM evaluation confirmed that the morphological abnormalities have been recognized to enhance floor space, which could enhance the interplay with electrolytes and increase electrochemical efficiency^25,26. Moreover, heteroatoms have been recognized to affect the physicochemical and electrochemical conduct by altering the digital construction of activated biochar, rising defect density, and rising the supply of catalytic websites.

HRTEM

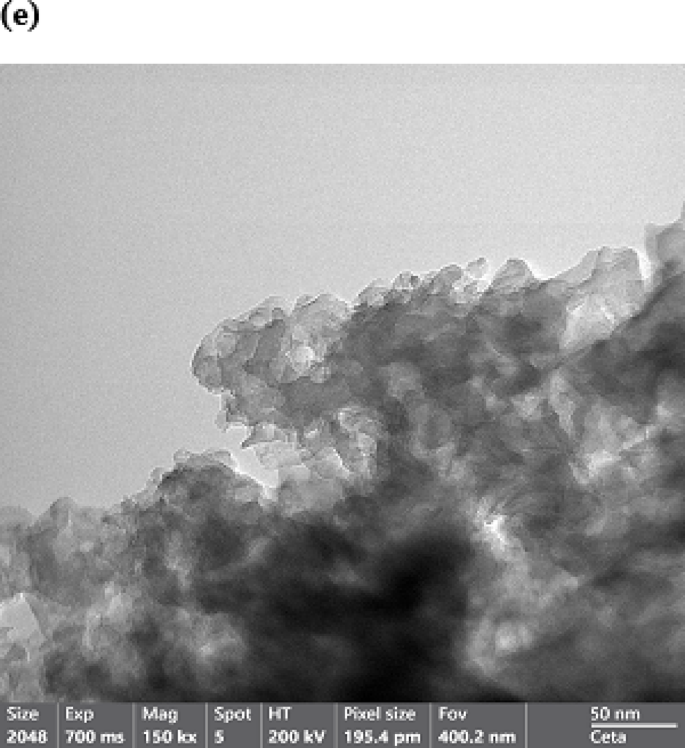

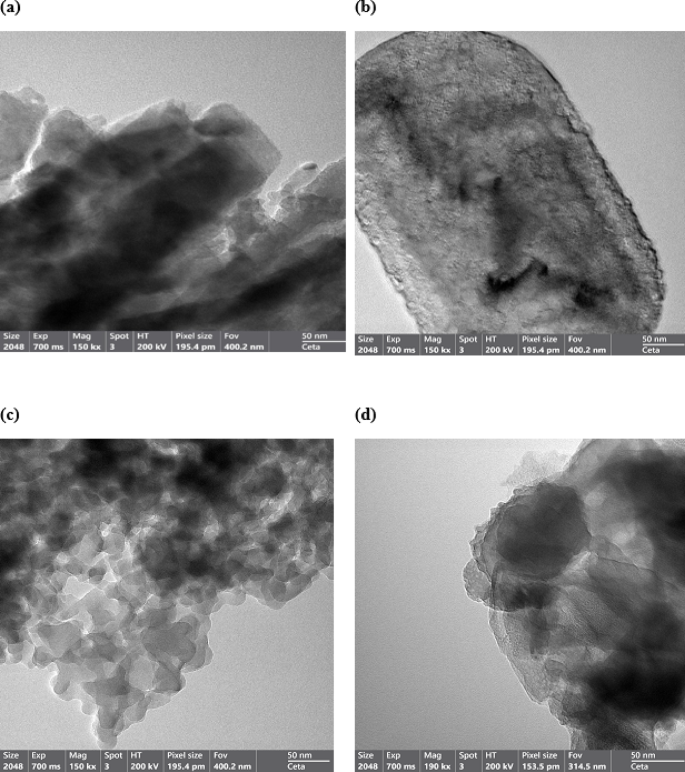

HRTEM examination additional confirmed the presence of layered carbon buildings with a graphitic-like construction, as illustrated at completely different magnifications in Fig. 3(a-e) and Determine S3. Photos have been captured at magnifications starting from 150,000 to 245,000X with a scale bar of fifty nm and an working voltage of 200 kV. The consultant HRTEM photographs revealed hanging layered, sheet-like buildings shaped by irregular carbonaceous agglomerates. The samples as an entire confirmed discernible variations in density, thickness, and texture on account of their completely different biomass origins. The OP-derived activated biochar was partially clear with crumpled plate-like layers, as proven in Fig. 3a. The inclusion of skinny nanosheets, comparable to layered carbon buildings or graphitic-like areas, was recommended by this translucent conduct²². The BP-derived activated biochar, however, kinds capsule-like aggregated or clustered carbon domains with noticeable inside heterogeneity²⁷, as seen in Fig. 3b. Inside cavities, variations in structural density, or trapped natural residues may all contribute to this complexity²⁷. Densely packed particles with comparatively constant diameters and polygonal to spherical kinds have been seen within the RS-derived activated biochar (Fig. 3c). The CC-derived activated biochar was proven in Fig. 3d as a compact multilayered flake product of a hierarchical community of skinny, stacked sheets. This morphology highlights the structural group with the aggregation of multilayered carbon buildings or graphitic-like areas, underscoring the structural group inside this pattern¹. Lastly, the WH-derived activated biochar, which has sheet-like areas scattered with granular, tough, or fragmented carbonaceous clusters, was proven in Fig. 3e. These outcomes offered essential insights into the potential electrochemical and catalytic conduct of the activated biochar supplies derived from the 5 biomass sources, highlighting their variety and complexity.

XRD

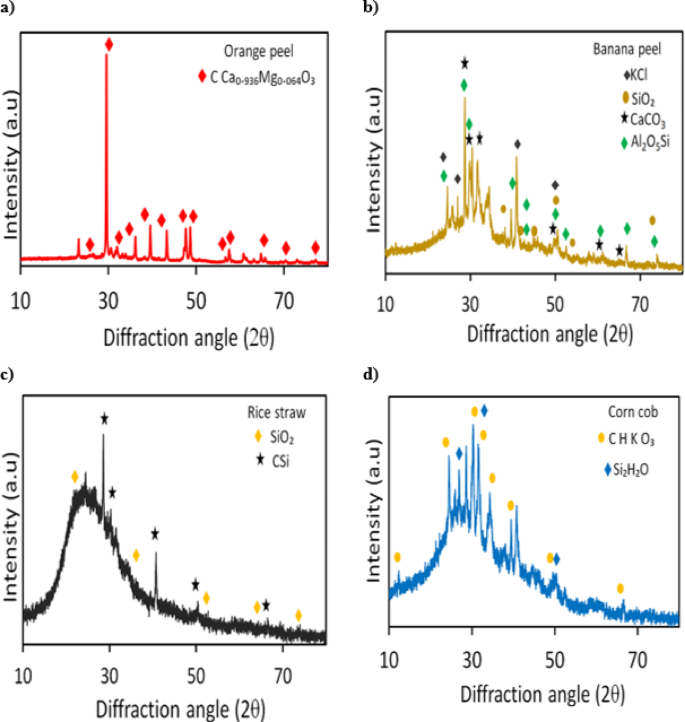

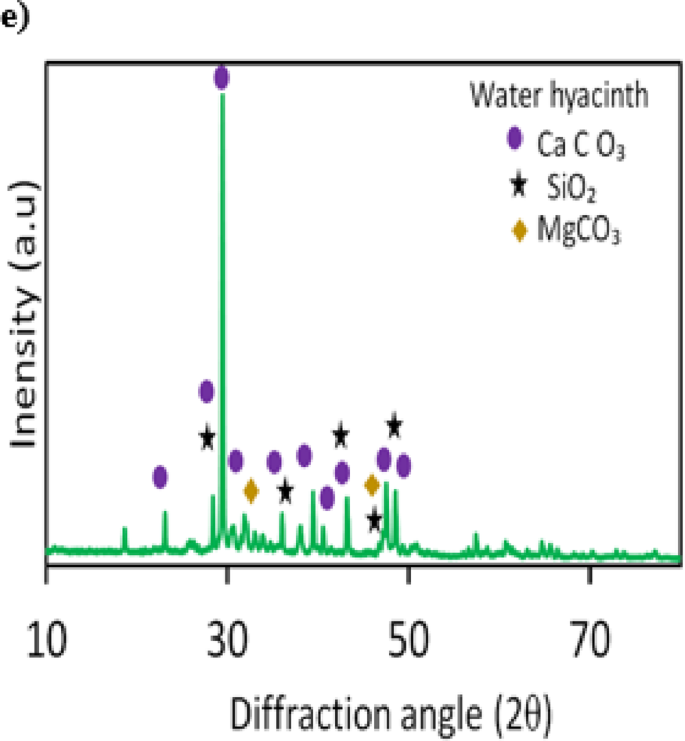

The XRD patterns introduced in Fig. 4 offered insights into the crystallographic construction and composition of assorted activated biochar samples derived from completely different agricultural wastes. Every subfigure 4(a-e) shows a selected kind of biochar, with distinct peaks indicating the presence of particular mineral phases or crystalline buildings. It could possibly be seen that each one biochar samples exhibited distinct crystalline mineral phases, which could possibly be attributed to the homogeneous distribution of metals inside the biochar matrix, resulting in an absence of separate carbon peaks that will be utterly masked by inorganic metals. The presence of those phases additional confirms the mineral-rich nature of the produced biochar, which aligns with findings that reported related mineral phases in biochar derived from agricultural residues²⁸.

The XRD sample of OP-derived activated biochar (Fig. 4a) confirmed, well-defined peaks, notably at 2θ values of 23.21°, 29.54°, 31.53°, 36.10°, 39.54°, 43.30°, 47.23°, 47.62°, 48.62°, 56.69°, 57.51°, 58.20°, 60.78°, 61.08°, 61.46°, 63.15°, 64.75°, 72.94°, 76.41°, and 77.22°, according to JCPDS#9,001,297. The dominance of those peaks recommended that the OP biochar accommodates a big quantity of inorganic minerals, possible as a result of excessive ash content material within the authentic biomass²⁹. The presence of Ca₀.₉₃Mg₀.₀₆₄O₃ additional confirmed the mineral-rich nature of this biochar.

The XRD sample for BP-derived activated biochar (Fig. 4b) exhibited a broad and fewer intense peaks at 2θ round ≈ 24.59°, 26.99°, 29.84°, 31.72°, 39.59°, 40.85°, 40.85°, 45.82°, 50.49°, 52.54°, 55.15°,59.01°, 60.97°,66.68°, and 73.96°, together with sharper peaks at increased angles. The recognized phases embrace SiO₂ (JCPDS#1011176), KCl (JCPDS#9003117), CaCO₃ (JCPDS#1010928) and Al₂O₅Si (JCPDS#9000719). The broad peak recommended the presence of amorphous carbon, whereas the sharper peaks indicated crystalline mineral phases. The mix of amorphous and crystalline buildings implies that BP-derived activated biochar could have a heterogeneous composition, with each natural (carbonaceous) and inorganic (mineral) parts. The RS-derived activated biochar exhibited a broad amorphous hump between 28.556 and 40.693° (Fig. 4c), indicating partially disordered carbon with low crystallinity³⁰. Crystalline peaks akin to SiO₂ (JCPDS#1536409) have been superimposed. The sharpness and depth of those peaks recommend a extremely crystalline construction, possible as a result of silica-rich composition of rice straw³¹. The presence of SiO₂ was notably notable, because it was a standard part in plant-based biochar and might contribute to thermal stability and mechanical power³⁰.

As proven in Fig. 4d, the CC-derived activated biochar exhibited a number of peaks throughout the 2θ vary, with notable crystalline phases related to CHKO₃ (JCPDS#9016304) and hydrated silica (Si₂H₂O, JCPDS#1536253). The distribution of peaks recommended a blended crystalline and amorphous construction, with the potassium-based compounds possible contributing to the ionic conductivity of the biochar. The presence of silicon-based phases additional indicated the retention of inorganic minerals from the unique biomass. In the meantime, a number of crystalline phases akin to CaCO₃ (JCPDS#9016706), SiO₂ (JCPDS#1536409), and MgCO₃ (JCPDS#9001849) have been noticed within the WH-derived charcoal (Fig. 4e). The excessive depth of the CaCO₃ peak means that calcium carbonate is the first crystalline part on this biochar. The presence of MgCO₃ and SiO₂ additional indicated a mineral-rich composition.

Residual inorganic phases (e.g., silicates or carbonates) have been detected in some samples. These phases could come up from the intrinsic mineral content material of the biomass precursors. Whereas these species can affect floor properties comparable to wettability and defect formation, they don’t seem to be thought of main energetic websites for HER however could not directly have an effect on catalytic conduct¹⁸. Based on XRD measurements, SiO₂ was current in all samples besides OP, indicating the unique biomasses’ mineral composition³². The coexistence of numerous mineral phases inside the activated biochar may positively affect their electrocatalytic conduct by introducing energetic websites, modulating digital properties, and selling synergistic interactions with the carbon matrix. These structural options could facilitate electron transport and enhance accessibility to catalytically energetic websites, thereby contributing to enhanced HER efficiency³³. Due to this fact, the XRD outcomes confirmed the profitable synthesis of activated biochar from agricultural residues and aligned properly with the morphological options noticed in FESEM and HRTEM analyses.

Electrochemical characterization

HER analyses

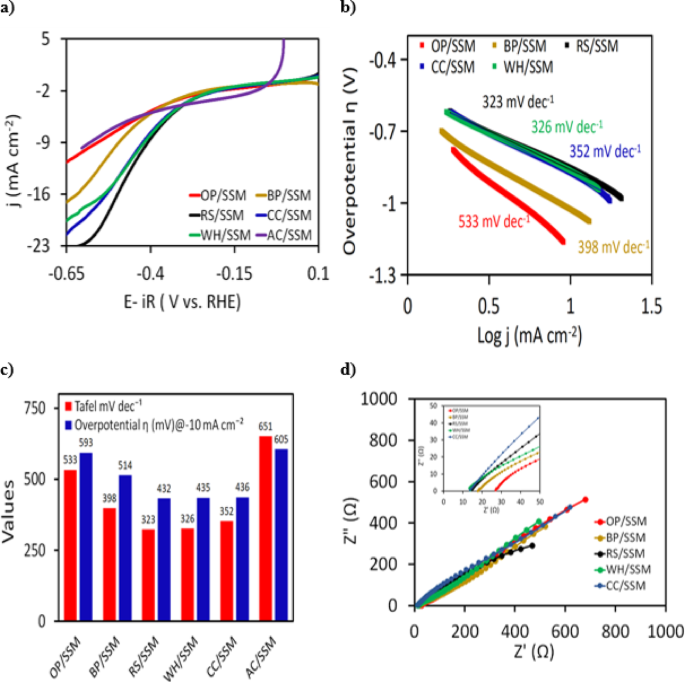

The HER electrocatalytic exercise of the synthesized activated biochar (AB) on the SSM (AB/SSM) collection was initially evaluated utilizing a three-electrode configuration in 0.1 M PBS (pH 7.2). The linear sweep voltammetry (LSV) polarization curves have been displayed as present density (j, mA cm⁻²) versus iR-corrected potential (E-iR vs. RHE). For comparability, industrial AC/SSM was additionally measured underneath the identical circumstances. As illustrated in Fig. 5a, the electrocatalytic HER efficiency of the ready activated biochar on this examine diversified considerably with biomass supply. Among the many investigated samples, RS/SSM exhibited one of the best total exercise, delivering the best present density (23.507 mA cm⁻²) and the bottom overpotential (η₁₀) of 432 mV at 10 mA cm⁻² among the many 5 ready catalysts, indicating extra favorable charge-transfer kinetics. CC/SSM confirmed comparable conduct, reaching a present density of 21.676 mA cm⁻² with an overpotential of 436 mV. WH/SSM additionally demonstrated related exercise, sustaining a present density above 20 mA cm⁻² and a decrease η₁₀ of 435 mV. In distinction, BP/SSM, OP/SSM and notably AC/SSM exhibited inferior efficiency, characterised by markedly decrease present densities (17.248, 11.799, and 10.062 mA cm⁻², respectively), increased overpotentials (514–600 mV), reflecting much less environment friendly HER electrocatalysis.

This highlights that the current supplies exhibit average however aggressive efficiency inside the context of impartial HER techniques³⁴. The outcomes demonstrated that integrating activated biochar with stainless-steel mesh electrodes may improve HER exercise underneath impartial situations. To additional examine the HER kinetics, the corresponding Tafel evaluation (Fig. 5b and Determine S4) was carried out. The Tafel slopes for RS/SSM, WH/SSM, and CC/SSM have been discovered to be within the vary of 323.2-352.4 mV dec⁻¹ by becoming the linear area of the η versus log(j) plot. These values have been considerably increased than these reported for noble-metal catalysts however have been according to metal-free carbon techniques working in impartial electrolytes. In comparison with OP/SSM (533.5 mV dec⁻¹), BP/SSM (398.2 mV dec⁻¹), and AC/SSM (651.67 mV dec⁻¹), these values have been considerably decrease. A comparative abstract of Tafel slope and overpotentials for the activated biochar-derived electrodes was introduced in Fig. 5c.

The comparatively excessive Tafel slopes point out sluggish response kinetics, suggesting that the electrochemical desorption step (Heyrovsky response) is rate-limiting. This conduct is predicted underneath impartial situations, the place proton availability is restricted and water dissociation turns into the dominant pathway for hydrogen era. Consequently, the response requires extra power to activate water molecules, resulting in increased overpotentials than in acidic techniques. The HER proceeds via a sequence of elementary reactions, sometimes involving electrochemical desorption (Heyrovsky step)³⁵.

$$:{H}_{adverts}{+:H}_{2}O+{e}^{-}leftrightarrow:{H}_{2}+O{H}^{-}+* ;;;;;;{textual content{(Heyrovsky step)}}$$

(4)

the place * denotes an unoccupied energetic web site on the floor of activated biochar.

The HER underneath impartial electrolyte situations presents intrinsic kinetic limitations in comparison with acidic or alkaline media. In impartial phosphate-buffered options, the focus of freely out there protons is considerably decrease; subsequently, hydrogen era primarily depends on water dissociation moderately than direct proton discount. This course of is inherently slower and requires extra activation power, resulting in increased overpotentials and lowered response charges. Moreover, the buffering motion of the electrolyte performs a twin position by sustaining steady pH situations whereas concurrently limiting speedy proton availability on the electrode–electrolyte interface. In consequence, proton transport towards catalytically energetic websites turns into restricted, additional slowing HER kinetics. These mixed elements, together with sluggish water dissociation, restricted proton transport, and buffer-mediated constraints, contribute to the general issue of reaching environment friendly HER exercise underneath impartial situations. Consequently, the comparatively excessive Tafel slopes and average catalytic efficiency noticed on this examine could be attributed primarily to those inherent limitations moderately than solely to the fabric properties^36,37,38.

The alternate present density (j₀, mA cm⁻²), an important measure derived by extending the Tafel plots to an overpotential of 0 V vs. RHE, was used to additional consider the supplies’ intrinsic catalytic exercise. For RS/SSM, WH/SSM, and CC/SSM, the computed j₀ values have been 2.16 × 10^− 2, 2.18 × 10^− 2, and a couple of.33 × 10^− 2 mA cm⁻², respectively. The improved intrinsic HER exercise of the RS/SSM, WH/SSM, and CC/SSM electrodes was confirmed by these values, which have been a lot better than these discovered for OP/SSM (6.33 × 10^− 2 mA cm⁻²), BP/SSM (2.6 × 10^− 2 mA cm⁻²), and industrial AC/SSM (4.37 × 10^− 2 mA cm⁻²), confirming the improved intrinsic HER exercise of the RS/SSM, WH/SSM, and CC/SSM electrodes. The low j₀ confirmed restricted intrinsic catalytic exercise, indicating that though the supplies present accessible energetic websites, the binding power of hydrogen intermediates and response kinetics stay suboptimal. Nonetheless, the intrinsic catalytic exercise stays average, as mirrored by the low alternate present density, highlighting the necessity for additional materials optimization.

EIS evaluation

EIS measurements have been carried out earlier than the sturdiness take a look at in a impartial 0.1 M PBS to acquire a fuller understanding of the kinetics driving the exceptional HER exercise and the cost switch conduct on the AB/SSM-electrolyte interface. The Nyquist plots have been displayed in Fig. 5d, and the corresponding circuit utilized for becoming was displayed in Determine S5. OP/SSM had the slowest charge-transfer resistance (Rct) at 2.57 Ω and the biggest impedance response among the many evaluated AB/SSM electrodes, indicating the worst HER kinetics. RS/SSM, WH/SSM, and CC/SSM, however, confirmed the smallest arc, which corresponded to a lot lowered Rct of 1.09, 1.29, and 1.37 Ω, respectively. Furthermore, all electrodes exhibited an inclined semicircle, confirming that Rct controls the HER kinetics, whereas mass-transport constraints have been insignificant underneath the measurement situations²⁷. As summarized in Desk S2, the electrolyte resistance (R_s) values have been almost an identical for all samples, whereas the R_ct diversified considerably. This commentary signifies that the impedance variations primarily originate from interfacial processes on the AB/SSM electrode–electrolyte interface moderately than from variations in electrolyte resistance. Lowered Rct signifies enhanced interfacial electron switch, which contributes to improved HER efficiency³⁹. The correlation between decrease Rct and decrease overpotential recommended that cost switch kinetics play a dominant position in figuring out catalytic exercise underneath impartial situations⁴⁰.

In contrast with OP/SSM, the remaining electrodes confirmed intermediate semicircle diameters, reflecting progressive enhancements in electrical conductivity, water activation functionality, accessibility of energetic websites, hydrogen intermediate (H*) adsorption/desorption conduct, and interfacial wettability. Furthermore, AC/SSM (Determine S6) displayed the bottom Rct worth amongst all evaluated supplies. This discrepancy is likely to be attributed to hydrogen bubble accumulation, sluggish floor kinetics, elevated power necessities, and associated mass transport boundaries on the AC/SSM electrolyte interface. The general HER exercise was as follows: RS/SSM > WH/SSM > CC/SSM > BP/SSM > OP/SSM.

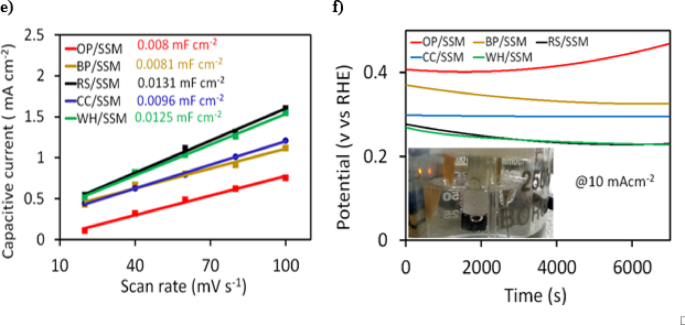

Moreover, the electrochemical floor areas (ECSAs) within the non-Faradaic area have been evaluated utilizing cyclic voltammetry at scan speeds of 20–100 mV s⁻¹ to additional evaluate the electrocatalytic exercise throughout samples obtained from AB (Determine S7). The ECSAs, calculated from the slope of the capacitive present versus scan price plot representing the double-layer capacitance (Cdl), have been introduced in Fig. 5e. In contrast with OP (3.20 cm²) and BP (3.24 cm²), the RS-, WH-, and CC-derived activated biochar samples exhibited a better density of accessible energetic websites, with values of 5.24, 5.0, and three.84 cm², respectively. This was according to their extra developed porous morphology noticed in FESEM photographs. Nonetheless, it ought to be famous that ECSA values have been based mostly on an assumed particular capacitance worth of 25 µF cm⁻², which is often reported for carbon-based supplies.

The improved HER efficiency of RS-, WH-, and CC-derived activated biochar could be attributed to a mixture of structural and electrochemical elements, comparable to increased porosity and floor roughness, improved electron transport pathways and intrinsic heteroatoms and mineral phases. This synergistic impact was according to earlier research displaying that biomass-derived carbon supplies exhibit enhanced catalytic conduct when structural defects, porosity, and floor functionalities are optimized³⁹. Residual inorganic phases comparable to CaCO₃ and SiO₂ have been detected within the biochar samples. These species could affect the catalytic efficiency not directly by modifying floor defects, digital construction, or wettability. To higher place the current outcomes, the HER efficiency was in contrast with beforehand reported biomass-derived catalysts in impartial media (Desk 2). It was noteworthy that the ready activated biochar electrocatalysts have been unable to maintain the present densities required at 20, 50, and 100 mA cm⁻², indicating limitations of their intrinsic HER exercise underneath the investigated situations. Due to this fact, additional optimization via the incorporation of transition-metal oxides or different catalytic species was beneficial to reinforce electrocatalytic exercise, electrical conductivity, and charge-transfer kinetics, as extensively reported in earlier research^{18,24,27,30,32,5,41,42,43,44}. Though the overpotential values obtained within the current work have been usually increased than, or near, these reported for superior biomass-derived electrocatalysts, they continue to be corresponding to many undoped biomass-based carbon supplies evaluated underneath impartial electrolytes, the place overpotentials often vary from roughly 320 to 600 mV^{32,39,43,45,46}.

The comparatively low present densities noticed on this examine could also be attributed to the inherent complexity of HER in impartial media, the place sluggish water dissociation and a number of response pathways can restrict response kinetics and improve power obstacles. Consequently, regardless of demonstrating measurable electrocatalytic exercise, the ready biochar exhibited solely average HER efficiency in contrast with a number of beforehand reported biochar-based electrocatalysts^39,46. However, the outcomes clearly exhibit that the selection of biomass precursor performs a vital position in figuring out electrocatalytic conduct, with agricultural residues as counterparts investigated on this work. These findings emphasize the significance of precursor choice and supply a basis for future catalyst enchancment via compositional and structural engineering.

Desk 2 Comparability of biomass-derived HER electrocatalysts in impartial, acidic and alkaline media.

Stability evaluation

Chronopotentiometric checks demonstrated a steady present density of 10 mA cm⁻² versus RHE over ~ 8000 s (~ 2 h) with minimal potential drift for the best-performing electrodes. This take a look at simulated extended operational situations, as evidenced by optical photographs displaying steady hydrogen evolution on the activated biochar-coated SSM electrode floor underneath impartial situations. All through the experiment, all AB/SSM electrodes confirmed steady hydrogen effervescent. The RS/SSM, WH/SSM, and CC/SSM electrodes revealed average however aggressive catalytic efficiency underneath impartial situations all through the take a look at, as proven in Fig. 5f. They maintained almost fixed potentials of about 0.30 V vs. RHE with little or no drift.

These observations are according to the improved HER exercise of RS/SSM, WH/SSM, and CC/SSM and exhibit their comparatively steady operation throughout the short-term sturdiness take a look at performed underneath impartial situations. Whereas BP/SSM exhibited average conduct, characterised by a slight downward pattern in potential, reflecting electrochemical activation via improved electrolyte wetting and/or the publicity of extra energetic websites. In distinction, OP/SSM displayed the biggest potential fluctuations, suggesting ineffective cost switch, unstable interfacial kinetics, and potential floor restructuring. These outcomes highlighted the vital position of environment friendly cost switch kinetics in making certain short-term (~ 2 h) HER operation in impartial electrolytes; nonetheless, this length is inadequate to verify long-term sturdiness for sensible functions. Due to this fact, the current outcomes present preliminary perception into stability, and prolonged testing is required in future work.
